PQ12

PQ12 AC/DC general power supply photoelectric switch, can be used in packaging, logistics, machinery manufacturing and other fields.
Type of sample：PQ12.01RS2C1.*

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

The detection distance is long, up to 700mm

24...240VAC/24...240VDC power supply arbitrary input

Use visible red LED

With inductive distance adjustment button

Action mode switch can be switched

With signal output indicator light

Basic parameters

Detection range0…700mm

light sourceLED，red

LED light wavelength 940nm

Transmitted signal waveformPulse

Switching frequency500Hz

Response timeBelow 20ms

Sensitivity adjustmentMulti-turn knob to adjust scan range

Operating modeLight ON / Dark ON model

Electrical parameters

Power supply24…240VAC / 24…240VDC

Residual waviness0…15%，From UB

Open current0…20mA

Digital switching quantity output number1 light beam

Maximum switching current100mA

Switching voltageLow：≤2.5V High：≥(UB-2.5V)

Switch elementTransistor，NPN

Protective circuitReverse polarity protection;
Short circuit protection

Mechanical parameters

Size25×68×80mm（W×H×L）

Shell materialPlastic，PC-ABS

Lens cover materialPlastic

Net weight115g

Shell colourBlack

Environmental conditions

Operating temperature﹣20…+55℃

Storage temperature﹣25…+70℃

Protection classIP66

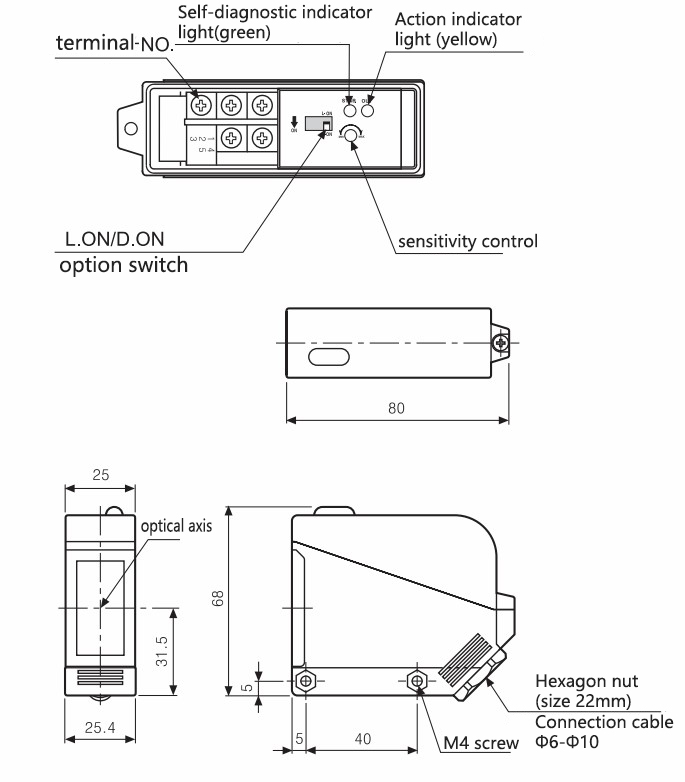

Overall dimensions

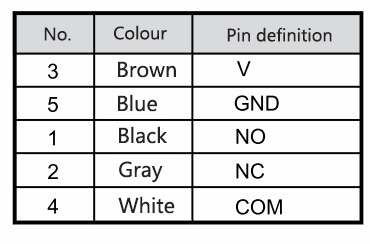

Wiring diagram


Brochures

Manuals

CAD/CAE

Certificate
