PQ04A

PQ04 medium range background suppression photoelectric switches, mainly used in general purpose various industries, can be applied in packaging, paper, robotics, 3D printers and other fields. Model No. Example: PQ04.41NS2Y.*

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Background suppression type distance up to 1.0 m

Light source red LED or red laser optional

Distance adjustment knob or optional one-touch tutorial setting

Strong anti-jamming ability

Short-circuit protection, reverse connection protection

Basic parameters

Detection distance30...2000mm or optionally 50...1000mm

Response time≤1ms

Light source 30...2000mm: red light 640nm / red laser 660nm
50...1000mm: red light 640nm

Laser classClass 1

Electrical parameters

Power supply12…24VDC

Offset Voltage≤15% DC

Open circuit current≤30mA

Protection current1.2 times

Output current≤100mA

Signal voltage≤2V

Output modePNP or NPN , NO or NC

Protection circuitPower reverse protection/short circuit protection /output reverse protection

Capacitive load≤0.2μF

VDE Security levelⅢ

Mechanical parameters

MountM3 nut fixing

Connection type4 wire

Cable2m

Product size45×32×21mm (L×W×H)

Shell materialABS plastic

Environmental conditions

Operating temperature﹣25…+55℃/-10...+45°C (laser type)

Storage temperature﹣30…+70℃

Protection classIP65

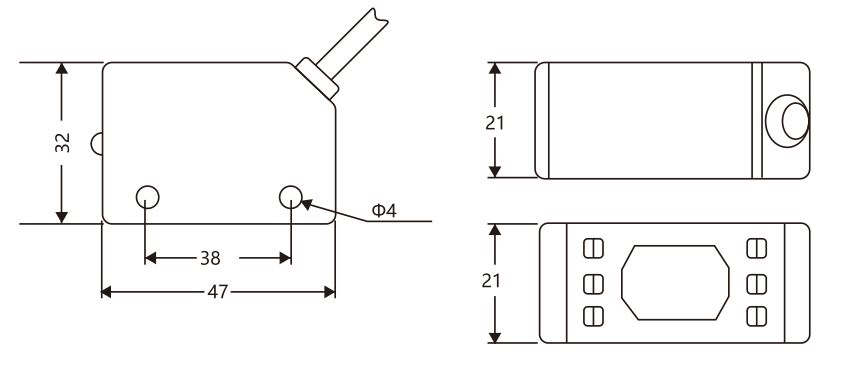

Overall dimensions

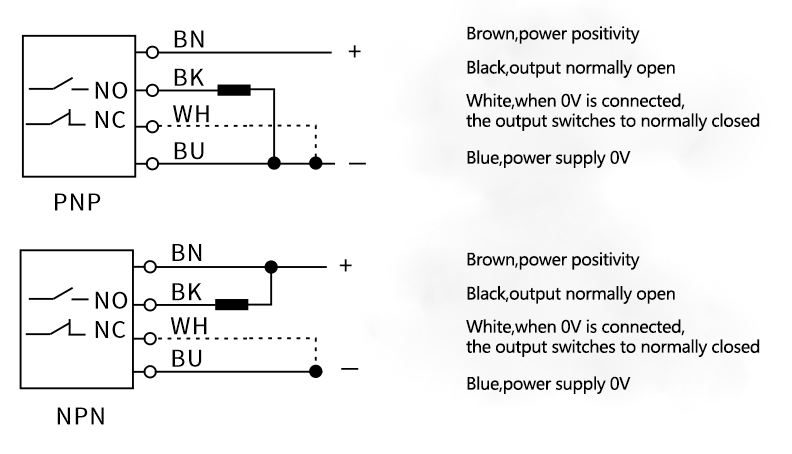

Wiring diagram
