FD-CM4 Driver Safety Series,light curtains are used in machining equipment,hazardous work areas,to prevent mechanical equipment to the operator's injuries and accidentally enter the hazardous area caused by personal injury,equipment injury,to protect personal and equipment safety.
Designed according to IEC61496 level 4 standard
Optical axis spacing can be selected from 10mm, 20mm, 40mm
MCU redundancy design, with self-checking and cross-checking functions, higher security
Wide voltage power supply, operating voltage 24VDC±20%
Line synchronization technology, strong resistance to electromagnetic interference
Individual redundant dual circuit outputs, to prevent the failure of individual circuits to prevent hidden dangers
Independent internal dual power supply

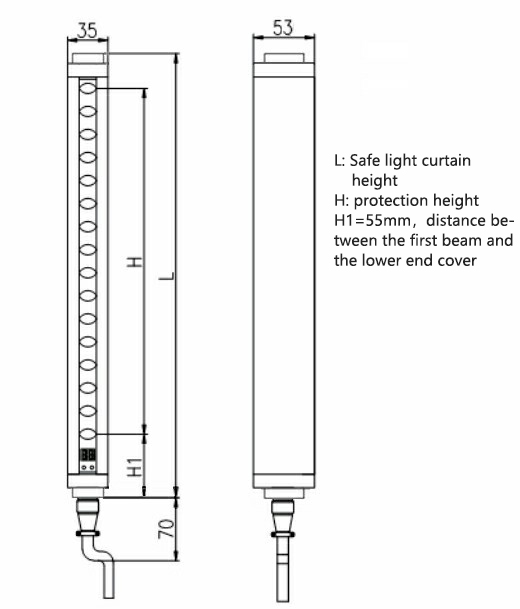

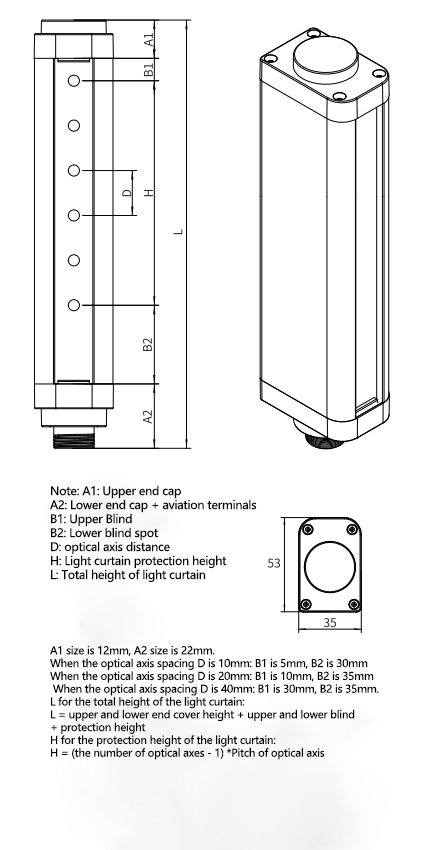

Overall dimensions

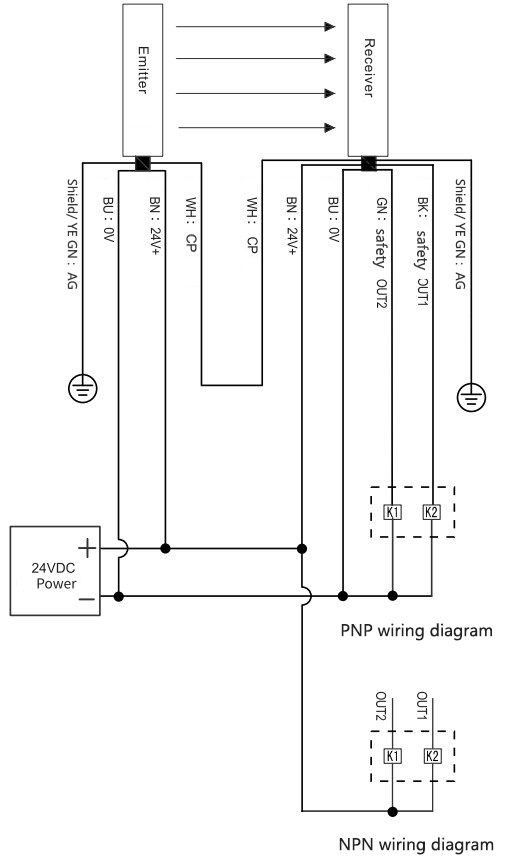

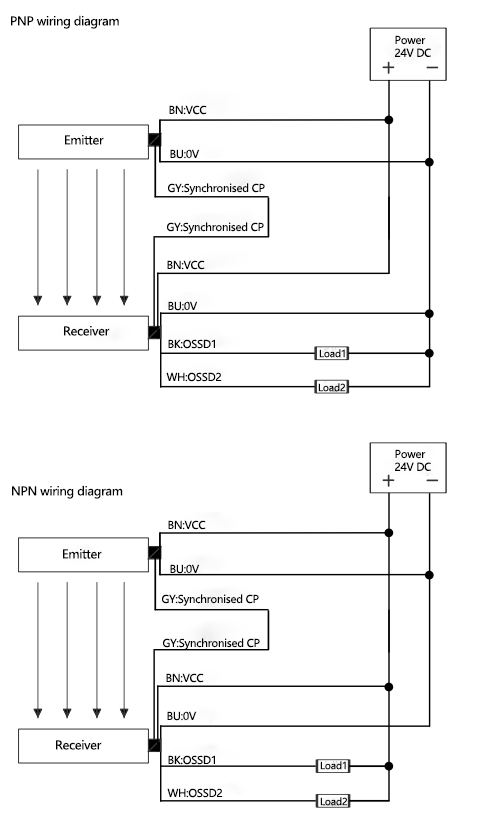

Wiring diagram
