FD-CM5 area protection type series,light curtains are used for machining equipment,hazardous work areas,to prevent mechanical equipment on the operator's injuries and accidentally enter the hazardous area caused by personal injury,equipment injuries, to protect personal and equipment safety.
Single pair of grating multi-faceted protection
Optical axis spacing can be selected 10mm, 20mm, 40mm
Long distance, single side of the furthest up to 30m or more
Dual circuit self-checking output design, high security
Line synchronization technology, anti-electromagnetic interference and light interference ability
Vibration-resistant structure and aluminum alloy casing, good resistance to vibration
A variety of mounting brackets are available for a wide range of mounting environments

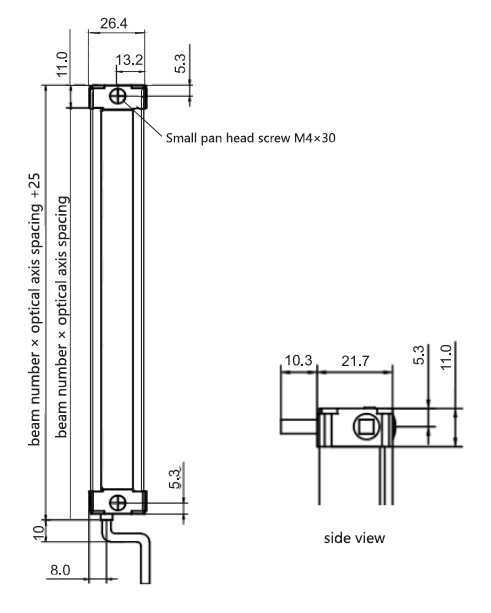

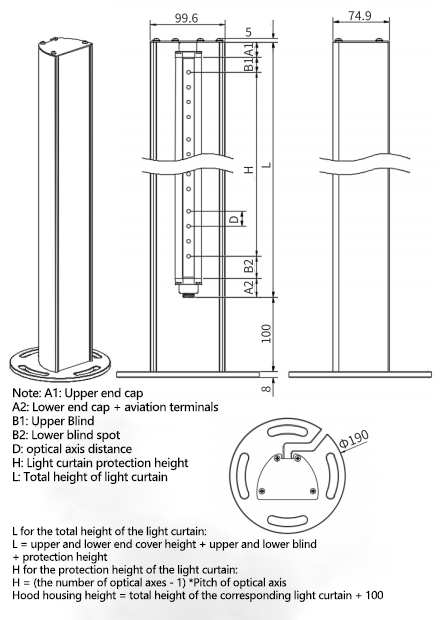

Overall dimensions

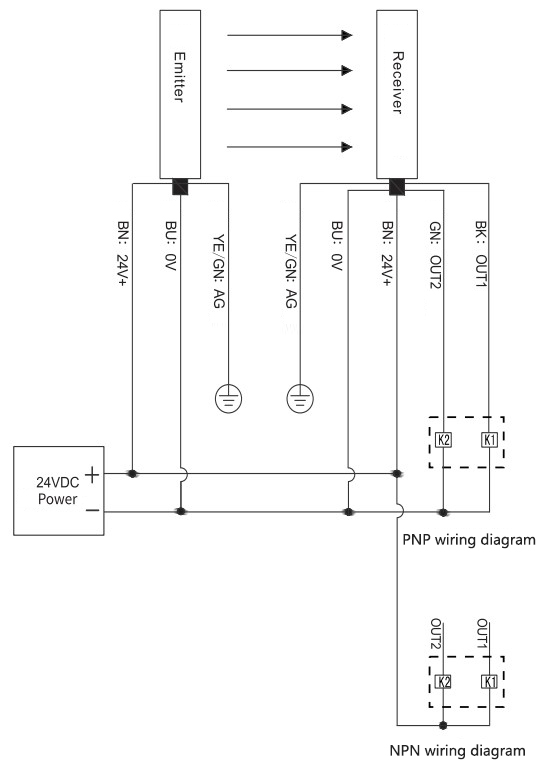

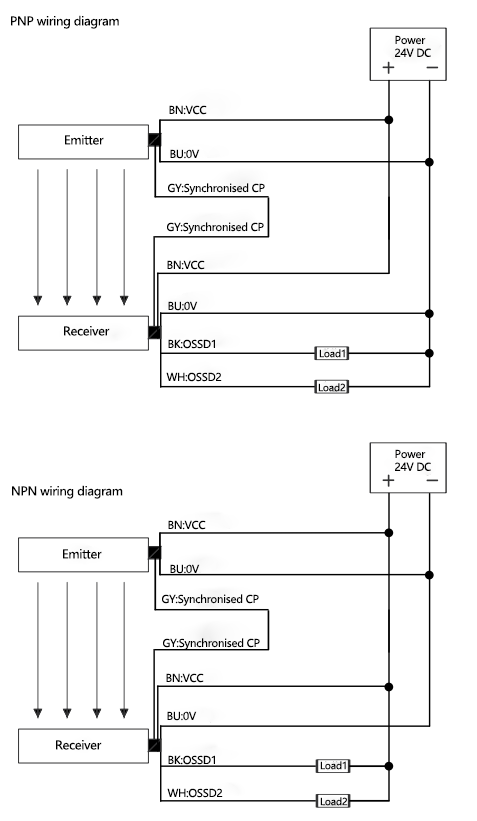

Wiring diagram
