PQ12A

PQ12A diffuse reflective photoelectric switches are used in general various industries, such as packaging, logistics, machinery manufacturing and other fields. Model No. Example: PQ12A.32RS2C1.*

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Detecting distance 0.02... .2.5m .2.5m

AC/DC power supply input (24...240VAC/DC) . 240VAC/DC)

Visible red LED

Sensing distance adjustment knob

Motion mode switch

Signal output indicator

Basic parameters

Detection distance0…2.5m

Light source LED, Red

LED light wavelength620nm

Transmission Signal Waveformimpulse

Switching Frequencies0.5Hz

Response time20ms or less

Number of actionsMechanical: more than 50 million times; Electrical: more than 100,000 times

Electrical parameters

Power supply24…240VAC / DC

Residual ripple Degree0...10% from UB

Open circuit current0…20mA

Number of digital switching outputs1 Beam

Maximum switching current2A

Voltage typeAC / DC

Switching voltage240VAC o r24VDC

Switching elementRelay

Power wastageUnder 2W

Protection circuitReverse polarity protection; short circuit protection

Mechanical parameters

Product size18×50×50mm（W×H×L）

Housing MaterialPlastic, PC-ABS

Lens cap materialPlastic

Cable2m PUR, black,5*0.2mm2

Net weight160g

Shell ColorBlack

Environmental conditions

Operating temperature﹣25…+55℃

Storage temperature﹣40…+70℃

Protection classIP65

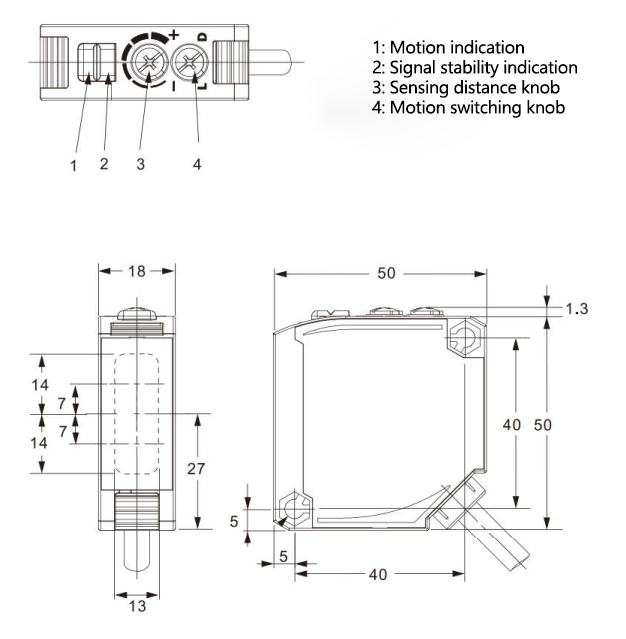

Overall dimensions

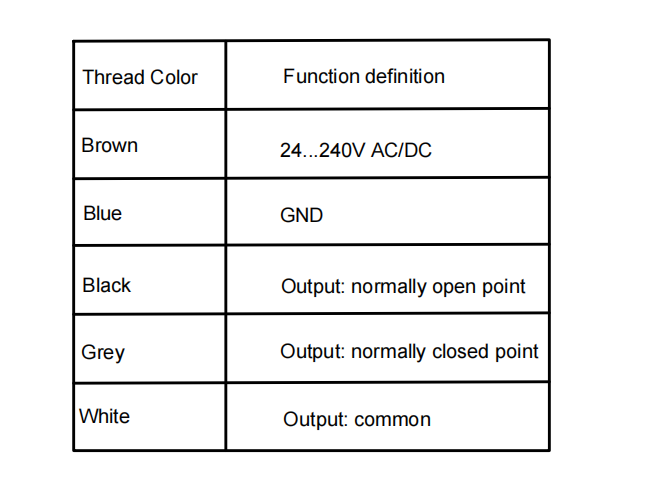

Wiring diagram
