PA03A

PQ03A small square photoelectric switch,used in general various industries,such as packaging,logistics,machinery manufacturing and other fields. Model No. Example: PQ03A.21NS2Y.*

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Universal small square shape design

Counter-reflective, specular reflective, diffuse reflective, background suppression optional

Point light source and strip light source, strip light type products suitable for hollow or concave-convex surfaces of the product detection

Economical and applicable to general industries

Sensitivity can be adjusted

Strong anti-jamming ability

Basic parameters

Detection distanceContrast: 8m
Specular reflection: 3m
Diffuse reflection: 100mm/300mm
Background suppression: 100mm/300mm/500mm/200mm

Response time≤1ms

Light source diameterMinimum 1mm for 100mm size, other 8...12mm light spots
Bar: 7*50mm (at 100mm); 11*70mm (at 200mm)

Light source Red, 640nm

Laser classClass 1

Electrical parameters

Power supply12…24VDC

Offset Voltage≤15% DC

Open circuit current≤30mA

Protection current1.2 times

Output current≤100mA

Signal voltage≤2V

Output modePNP or NPN , NO or NC

Capacitive load≤0.2μF

VDE Security levelⅢ

Mechanical parameters

MountM3 nut fixing

Connection type4 wire

Cable2m

Product size32.3×22.6×12mm (L×W×H)

Shell materialABS plastic

Environmental conditions

Operating temperature﹣25…+55℃

Storage temperature﹣30…+70℃

Protection classIP65

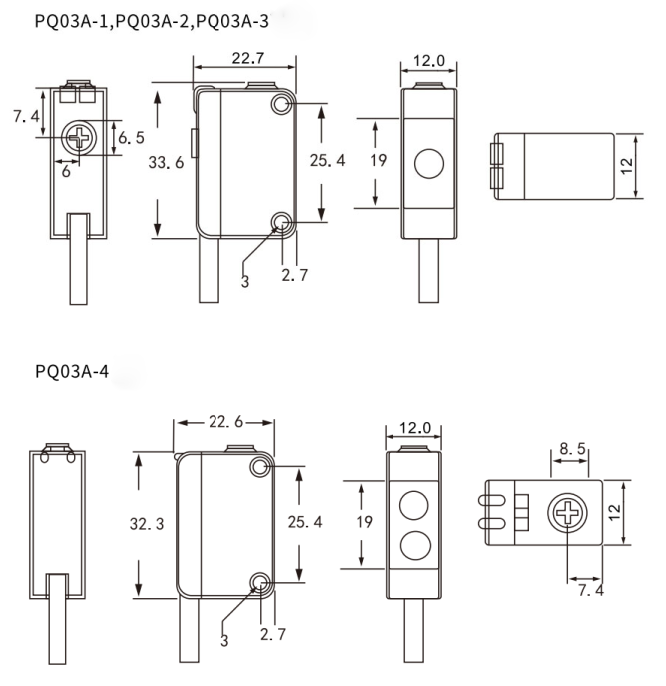

Overall dimensions

PQ03A尺寸图 -英文.png

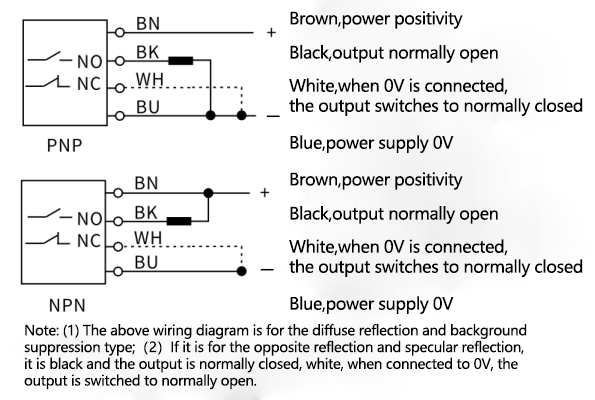

Wiring diagram
