PQ02A

PQ02A micro-miniature photoelectric switch,mainly used in the detection of small objects in a narrow space,can be used in electronics,semiconductors,printing machinery,robotics and other fields.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Compact form factor

Diffuse and contra-reflective types available

Response speed less than 1ms

Detects small objects up to 4mm

High interference immunity

Basic parameters

Detection distanceConvective: 1.5m
Diffuse: 100mm

Response time≤1ms

Light source diameterRed LED: 3mm@30mm; 4mm@50mm
5mm@100mm

Electrical parameters

Power supply10…30VDC

Offset Voltage≤15% DC

Open circuit current≤30mA

Protection current1.2 times

Output current≤100mA

Signal voltage≤2V

Output modePNP or NPN , NO or NC

Capacitive load≤0.2μF

VDE Security levelⅢ

Mechanical parameters

MountM3 nut fixing

Connection type3 wire

Cable2m

Product size21.8×14.5×8.5mm (L×W×H)

Shell materialPC plastic

Environmental conditions

Operating temperature﹣25…+70℃

Storage temperature﹣40…+85℃

Protection classIP65

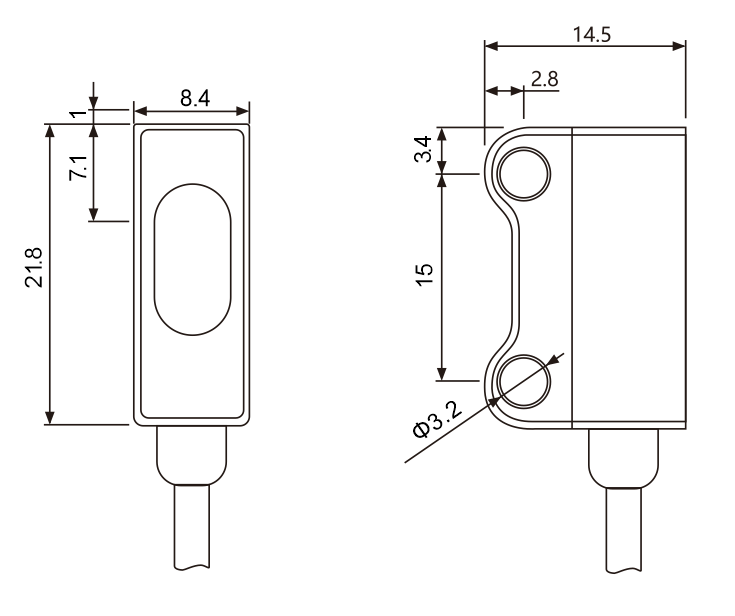

Overall dimensions

尺寸图 -英文.jpg

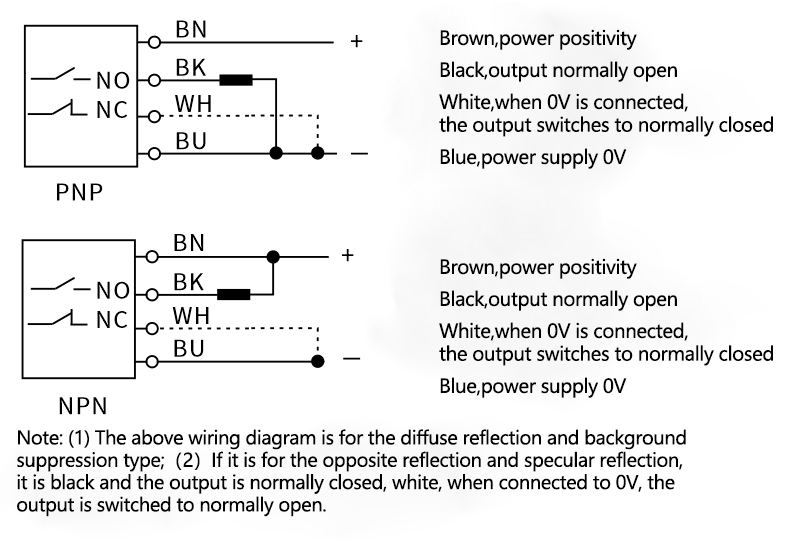

Wiring diagram
