FD-CM10 centering corrective type series,light curtains are used for machining equipment,hazardous work areas,to prevent mechanical equipment on the operator's injuries and accidentally enter the dangerous area caused by personal injury,equipment injury,to protect personal and equipment safety.
Position correction and centering detection for all kinds of coil materials
Single-side deviation correction, double-side combined deviation correction, centering deviation correction optional
Detection accuracy up to 1.25mm
Strong anti-jamming ability, especially for electromagnetic signals, stroboscopic light, welding arc light
Analog current/voltage output, switching RS485 output optional
Parallel scanning, cross-scanning, unilateral scanning scanning three kinds of scanning modes optional

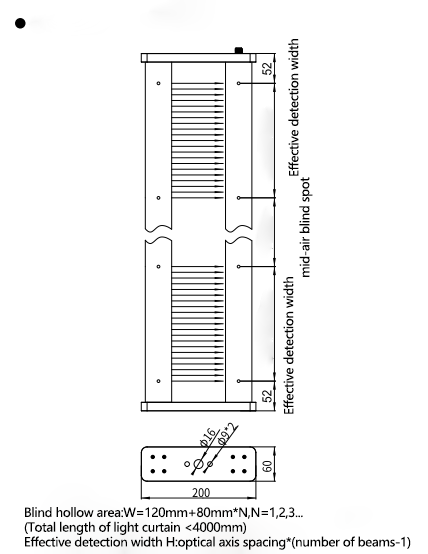

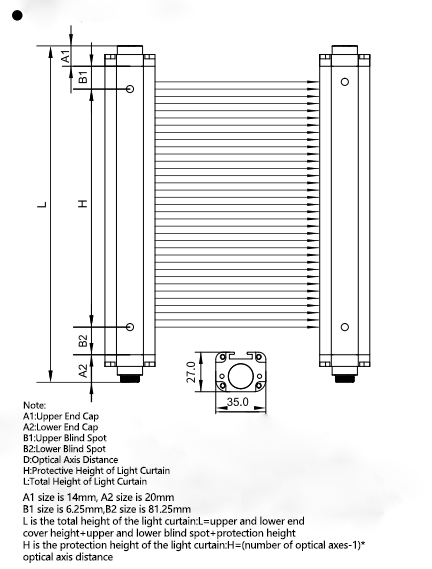

Overall dimensions

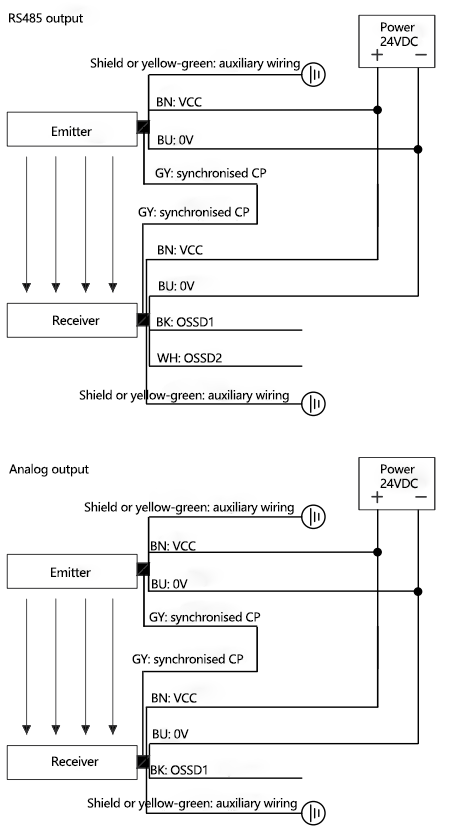

Wiring diagram
