FD-CM9 diffuse reflective type series,light curtains are used for machining equipment,hazardous work areas,to prevent mechanical equipment on the operator's injuries and accidentally enter the hazardous area caused by personal injury,equipment injuries,to protect personal and equipment safety.
Diffuse reflection type, the detection distance up to more than 2m
Only for area detection, can not be used as a security protection
Light curtains using the environment has a fixed background, you can independently learn the distance, the intensity of the emission
NPN/PNP dual signal output, normally open/closed can be switched
Eye-catching green power indicator, red signal indicator
Matching a variety of gears according to the actual use of the distance

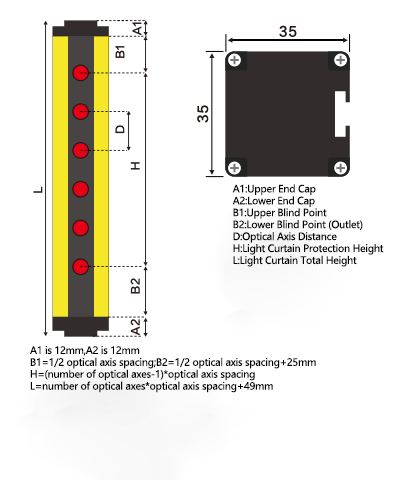

Overall dimensions

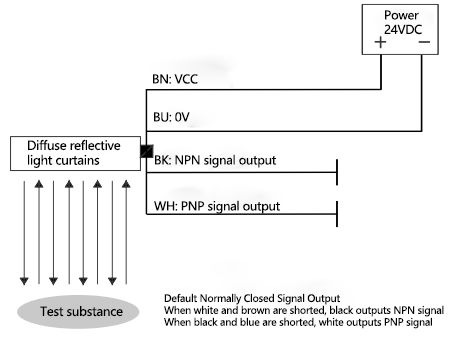

Wiring diagram
