FD-CM7 vehicle separation type series,light curtains are used for machining equipment,hazardous work areas,to prevent mechanical equipment to the operator's injuries and accidentally enter the dangerous area caused by personal injury,equipment injury,to protect personal and equipment safety.
Designed for vehicle separation detection
Optical axis spacing can be selected 20mm, 40mm
The focussing distance can be up to 20m
With self-test function, can monitor the foreign object blocking the beam and automatically shield the abnormal beam
Cover built-in electric heating glass, temperature controller, humidity controller, automatic temperature regulation
The use of high-energy, high-penetration imported photoelectric tubes, stable and reliable performance
Unique program algorithms, can be set to cover the object to achieve the required size before the Output signal
can communicate with the host computer.

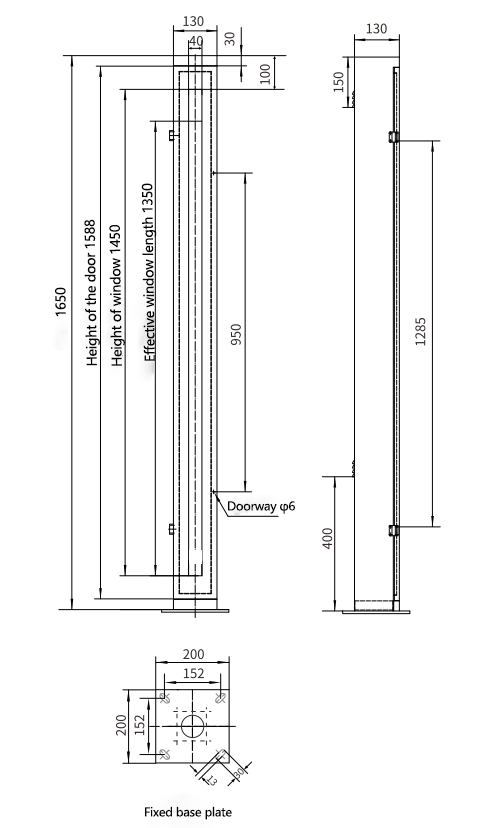

Overall dimensions

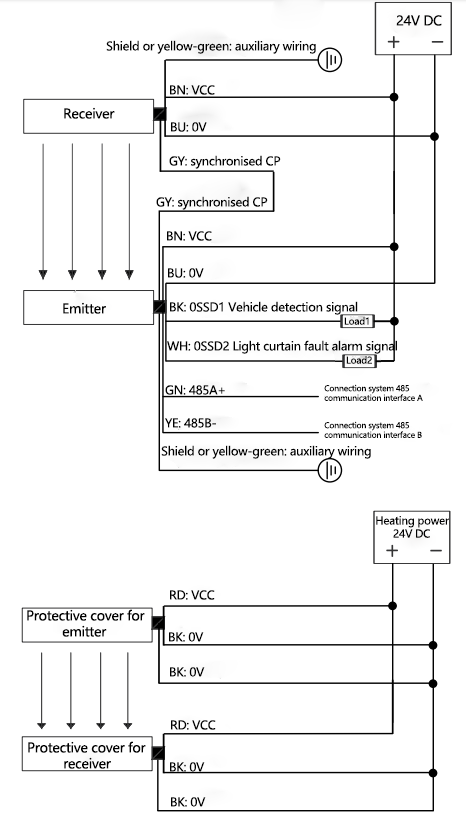

Wiring diagram
