FD-CM6 general-purpose,punching machine type,anti-sunlight type,anti-bright light interference type series,light curtains used in machining equipment,hazardous work areas,to prevent mechanical equipment on the operator's injuries and mistakenly enter the dangerous area caused by personal injury,equipment injury,to protect personal and equipment safety.
General-purpose type, press-specific type, sunlight-resistant type, anti-strong light interference type optional
Optical axis spacing can be selected 10mm, 20mm, 40mm
Long distance to the shooting distance, the farthest can be up to 30m
Dual-circuit self-checking output design, high security
Line synchronization technology, anti-electromagnetic interference and ultra-strong resistance to light interference
Vibration-resistant structure and aluminum alloy shell, good resistance to vibration
Punching machine type adopts the controller to detect the signals, the working voltage for AC110. 220V, AC380V
A variety of mounting brackets are available, suitable for a variety of installation environments.

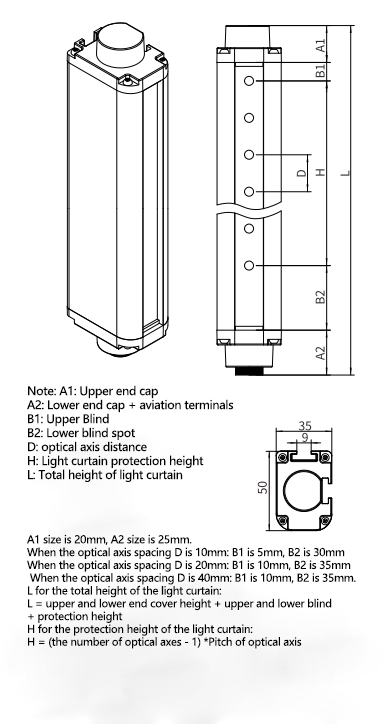

Overall dimensions

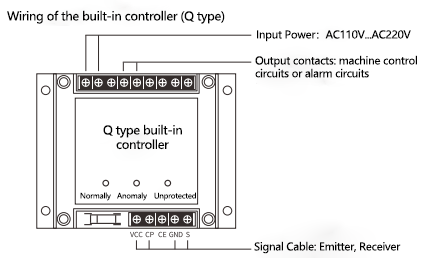

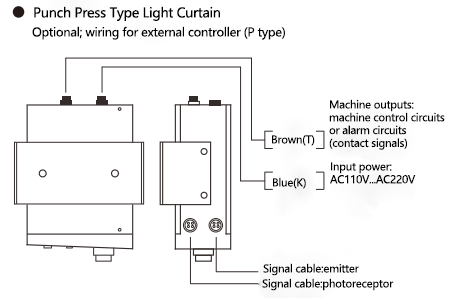

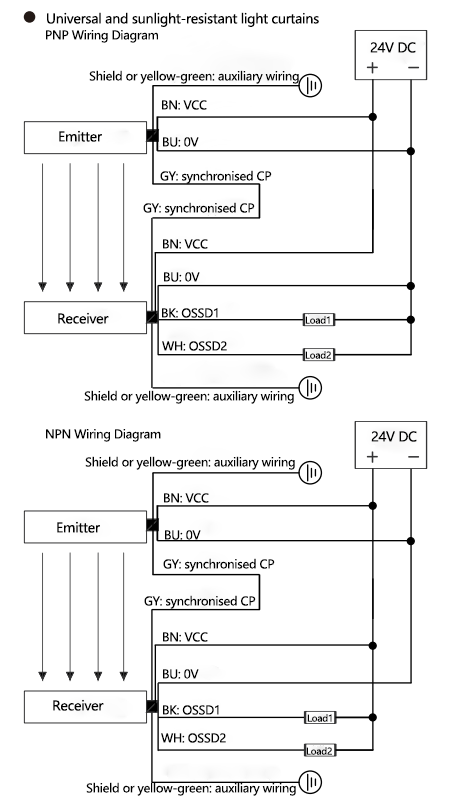

Wiring diagram
