PQ01B

PQ01B flat photoelectric switches are mainly used for the detection of tiny objects in narrow spaces,and can be used in the fields of electronics,semiconductors,printing machines,robots and so on.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Low-profile design

Diffuse front detection type, front detection type available

Response speed less than 1ms

Suitable for narrow installation space, such as electronics, semiconductor, printing and other industries

Cable and connector connection available

High anti-interference capability

Basic parameters

Detection distanceDiffuse, 5mm (black); 10mm (white)

Response time≤1ms

Light source diameter (diffuse)2mm diameter circular spot at 15mm
3mm diameter circular spot at 30mm

Electrical parameters

Power supply12…24VDC

Offset Voltage≤15% DC

Open circuit current≤25mA

Protection current1.2 times

Output current≤100mA

Signal voltage≤2V

Output modeNPN

Capacitive load≤0.2μF

VDE Security levelⅢ

Mechanical parameters

MountM2 nut fixing

Connection type4 wire

Cable2m

Product size14×20.2×7.2mm (L×W×H)

Shell materialPC plastic

Environmental conditions

Operating temperature﹣25…+70℃

Storage temperature﹣40…+85℃

Protection classIP65

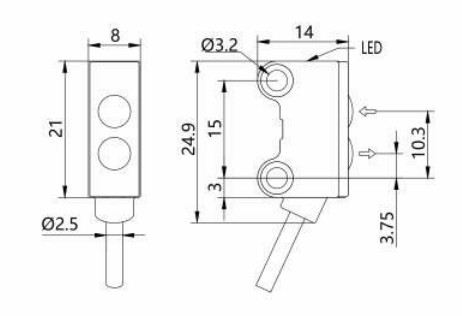

Overall dimensions

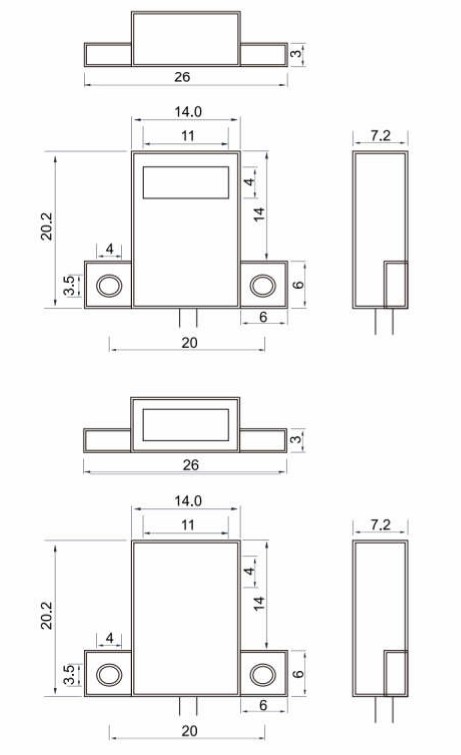

PQ01B尺寸图 - 英文.jpg

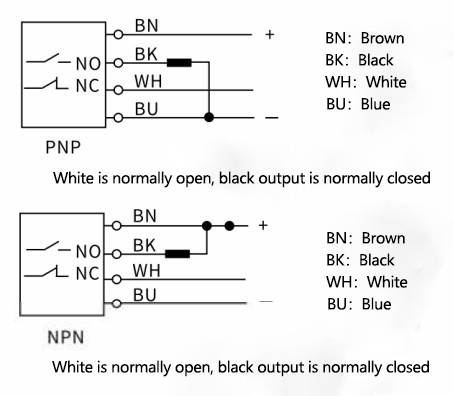

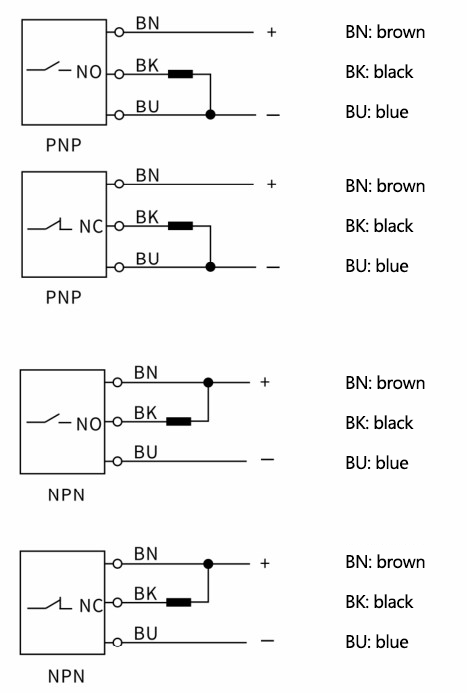

Wiring diagram
