PE-C9S12

PE-C9S12 light through-type lens on-type optical fiber element.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Light transmission lens

Side view

About 2g in weight

Basic parameters

Fiber optic componentsLight through type lens Correlation type

TypeSide view

WeightAbout 2g

Applicable to optical fiber and detection distance 1PE-C1M4S0
HSP：530；FINE：900；TURBO：1300；
SUPER：1900；ULTRA：3100；MEGA：3600

Applicable to optical fiber and detection distance 2PE-C1M4S3
HSP：530；FINE：900；TURBO：1300；
SUPER：1800；ULTRA：1800；MEGA：1800

Applicable to optical fiber and detection distance 3PE-C1M4S2
HSP：500；FINE：1100；TURBO：1500；
SUPER：3100；ULTRA：3600；MEGA：3600

Applicable to optical fiber and detection distance 4PE-C1M4S2/PE-C5M4S3/PE-C5M4S4
HSP：360；FINE：800；TURBO：1100；
SUPER：1600；ULTRA：2500；MEGA：3200

Environmental conditions

Operating temperature﹣40…+70℃

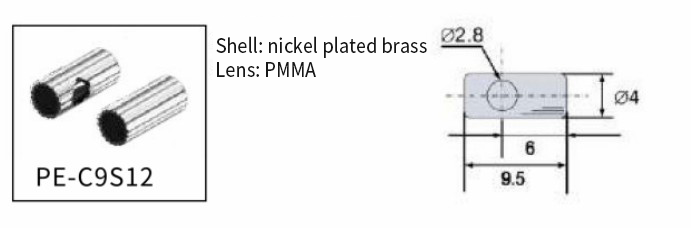

Overall dimensions
