PE-C9S10

PE-C9S10 light through-type lens on-type optical fiber element.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Light transmission lens

Side view with mounting hole

About 10g in weight

Basic parameters

Fiber optic componentsLight through type lens Correlation type

TypeSide view with mounting hole

WeightAbout 10g

Applicable to optical fiber and detection distance 1PE-C1M4S0
HSP：2600；FINE：3600；TURBO：3600；
SUPER：3600；ULTRA：3600；MEGA：3600

Applicable to optical fiber and detection distance 2PE-C1M4S4
HSP：3100；FINE：3600；TURBO：3600；
SUPER：3600；ULTRA：3600；MEGA：3600

Applicable to optical fiber and detection distance 3PE-C1M4S2
HSP：2300；FINE：3600；TURBO：3600；
SUPER：3600；ULTRA：3600；MEGA：3600

Applicable to optical fiber and detection distance 4PE-C1M4S3
HSP：1800；FINE：1800；TURBO：1800；
SUPER：1800；ULTRA：1800；MEGA：1800

Environmental conditions

Operating temperature﹣40…+105℃

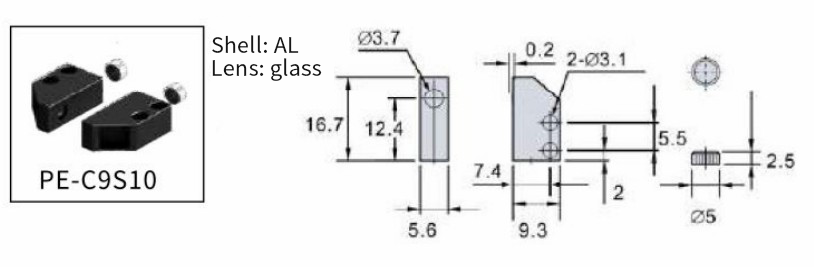

Overall dimensions
