PE-C9Z4

PE-C9Z4 light through-type lens on-type optical fiber element.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Light through type lens

Long detection range type

The aperture angle is about 15°

About 2g in weight

Basic parameters

Fiber optic componentsLight through type lens Correlation type

TypeLong detection range type

Angular apertureAbout 15°

WeightAbout 2g

Applicable to optical fiber and detection distance 1PE-C1M4SL1/PE-C1M4S0/PE-C5M4S3/PE-C5M4S4
HSP：2100；FINE：3600；TURBO：3600；
SUPER：3600；ULTRA：3600；MEGA：3600

Applicable to optical fiber and detection distance 2PE-C1M4S4
HSP：2500；FINE：3600；TURBO：3600；
SUPER：3600；ULTRA：3600；MEGA：3600

Applicable to optical fiber and detection distance 3PE-C1M4S2
HSP：1600；FINE：3300；TURBO：3600；
SUPER：3600；ULTRA：3600；MEGA：3600

Applicable to optical fiber and detection distance 4PE-C1M4S3/PE-C1M4SL3
HSP：1800；FINE：1800；TURBO：1800；
SUPER：1800；ULTRA：1800；MEGA：1800

Environmental conditions

Operating temperature﹣40…+70℃

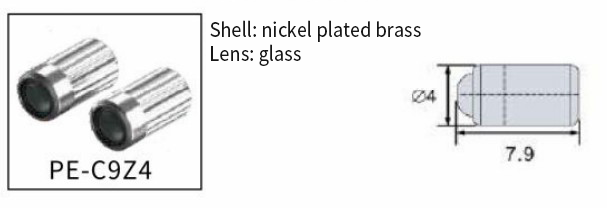

Overall dimensions
