PE-C8S1P3

PE-C8S1P3 narrow beam counterbeam optical fiber element.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Narrow beam type

Side view

The aperture angle is about 3°

Bending radius R10

The diameter of optical axis is Φ1.0

Basic parameters

Fiber optic componentsNarrow beam type Trough beam

TypeSide view

Angular apertureAbout 3°

Bending radiusR10

Optical axis diameterΦ1.0

Detection distanceHSP：210；FINE：330；TURBO：530；
SUPER：680；ULTRA：900；MEGA：1300

Environmental conditions

Operating temperature﹣40…+70℃

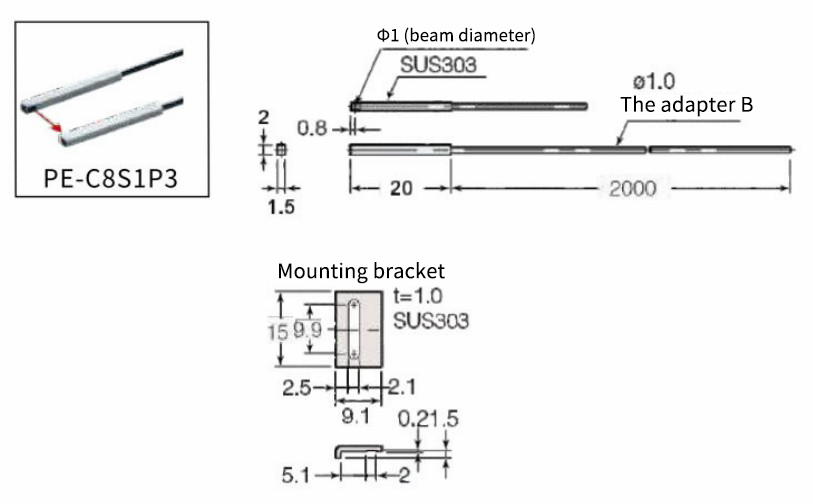

Overall dimensions
