PE-C8T1P1

PE-C8T1P1 narrow beam counterbeam optical fiber element.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Narrow beam type

Top view

The aperture angle is about 6°

Bending radius R2, resistance to twists and turns

The diameter of optical axis is Φ2.8

Basic parameters

Fiber optic componentsNarrow beam type Trough beam

TypeTop view

Angular apertureAbout 6°

Bending radiusR2 tortuous

Optical axis diameterΦ2.8

Detection distanceHSP：2400；FINE：3600；TURBO：3600；
SUPER：3600；ULTRA：3600；MEGA：3600

Environmental conditions

Operating temperature﹣40…+70℃

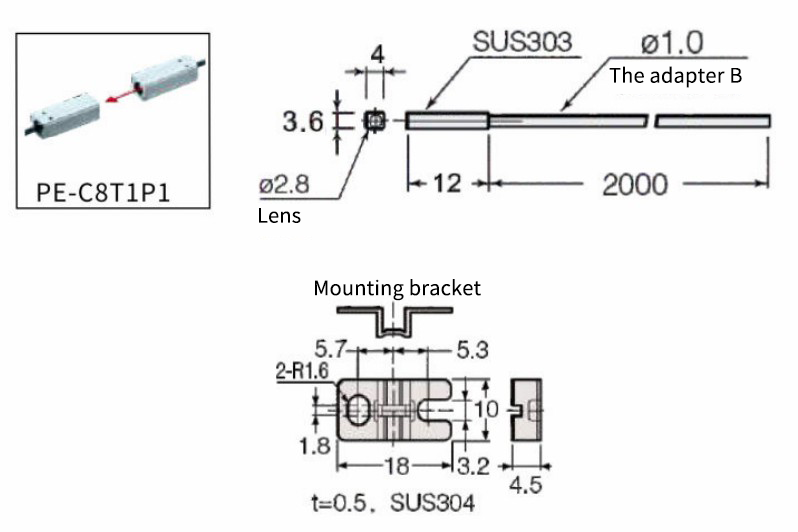

Overall dimensions


Brochures

Manuals

CAD/CAE

Certificate
