PE-C6R2S10

PE-C6R2S10 area counter type fiber optic element.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Regional

2m free cutting

Area

Optical axis width 10

Bending radius R10

The diameter of optical axis is about 10×3

Basic parameters

Fiber optic componentsArea type Trough beam

TypeArea type

Optical axis width10

Bending radiusR10

Optical axis diameter10×3

Detection distanceHSP：640；FINE：1400；TURBO：1700；
SUPER：2400；ULTRA：2800；MEGA：3400

Mechanical parameters

Overall dimensions2m free cut （Φ2.2）

Environmental conditions

Operating temperature﹣40…+70℃

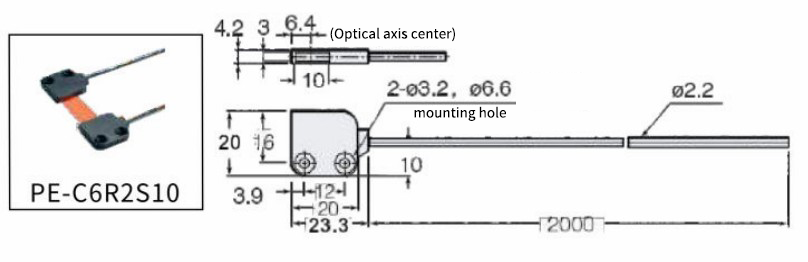

Overall dimensions
