PE-C6R1S100

PE-C6R1S100 area counter type fiber optic element.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Regional

2m free cut

Array

Optical axis by 100

Bending radius R10

The diameter of optical axis is about 100×0.25

Basic parameters

Fiber optic componentsArea type Trough beam

TypeArray

Optical axis width100

Bending radiusR10

Optical axis diameterAbout 100×0.25

Detection distanceHSP：320；FINE：600；TURBO：850；
SUPER：1200；ULTRA：1900；MEGA：2800

Mechanical parameters

Overall dimensions2m free cut（Except for the 50mm helical part）

Environmental conditions

Operating temperature﹣40…+70℃

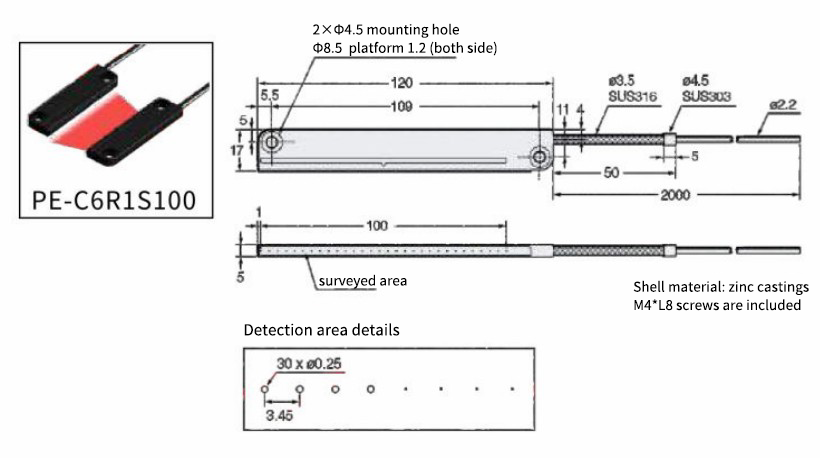

Overall dimensions
