PE-C6R1S40

PE-C6R1S40 area counter type fiber optic element.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Regional

2m free cut

Array

Optical axis by 40

Bending radius R10

The diameter of optical axis is about 40×0.25

Basic parameters

Fiber optic componentsArea type Trough beam

TypeArray

Optical axis width40

Bending radiusR10

Optical axis diameterAbout 40×0.25

Detection distanceHSP：360；FINE：640；TURBO：900；
SUPER：1250；ULTRA：1900；MEGA：2800

Mechanical parameters

Overall dimensions2m free cut（Except for the 50mm helical part）

Environmental conditions

Operating temperature﹣40…+70℃

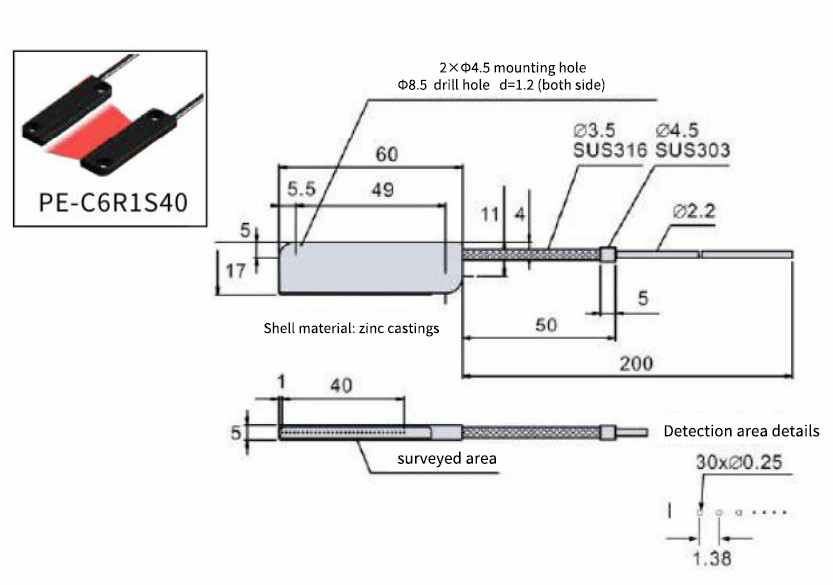

Overall dimensions
