PE-C6R1S10

PE-C6R1S10 area counter type fiber optic element.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Regional

2m free cut

Array

Optical axis by 10

Bending radius R4

The diameter of optical axis is about 11×0.3

Basic parameters

Fiber optic componentsArea type Trough beam

TypeArray

Optical axis width10

Bending radiusR4

Optical axis diameterAbout 11×0.3

Detection distanceHSP：200；FINE：440；TURBO：540；
SUPER：840；ULTRA：1400；MEGA：2200

Mechanical parameters

Overall dimensions2m free cut（Φ2.2）

Environmental conditions

Operating temperature﹣40…+70℃

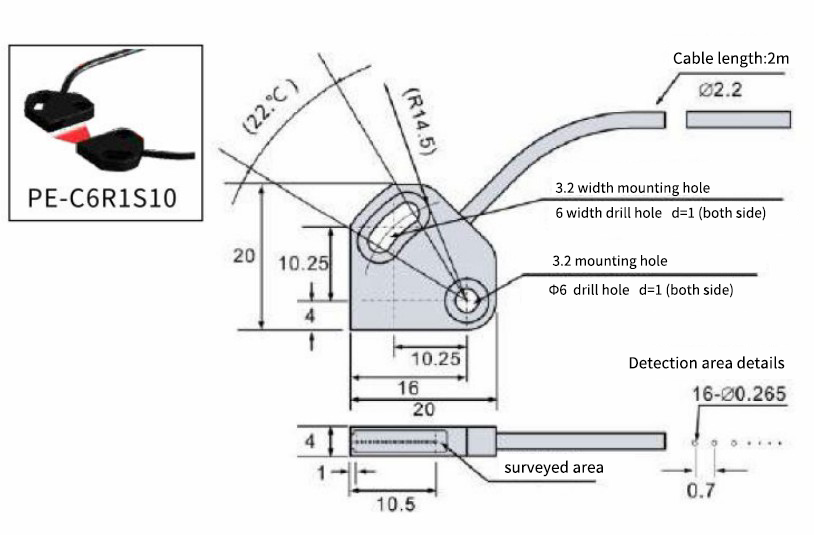

Overall dimensions
