PE-C5M4S4

PE-C5M4S4 high temperature-resistant optical fiber element.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

High temperature resistant type

2M do not cut

Bending radius R25

The diameter of the optical axis is Φ1.0

Basic parameters

Fiber optic componentsHigh temperature resistant type Trough beam

SpecificationM4

Bending radiusR25

Optical axis diameterΦ1.0

Detection distanceHSP：250；FINE：390；TURBO：680；
SUPER：900；ULTRA：1300；MEGA：1800

Mechanical parameters

Overall dimensions2m do not cut

Environmental conditions

Operating temperature﹣40…+300℃

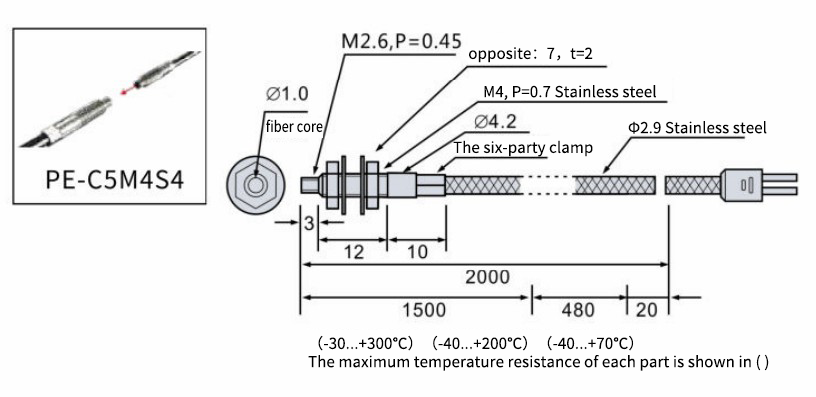

Overall dimensions
