PE-C5M4S4A

PE-C5M4S4A high temperature-resistant optical fiber element.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

High temperature resistant type

2m free cut

Bending radius R20

The diameter of the optical axis is Φ1.5

Basic parameters

Fiber optic componentsHigh temperature resistant type Trough beam

SpecificationM4

Bending radiusR20

Optical axis diameterΦ1.5

Detection distanceHSP：340；FINE：520；TURBO：720；
SUPER：1100；ULTRA：1800；MEGA：2700

Mechanical parameters

Overall dimensions2m free cut（Φ2.2）

Environmental conditions

Operating temperature﹣40…+150℃

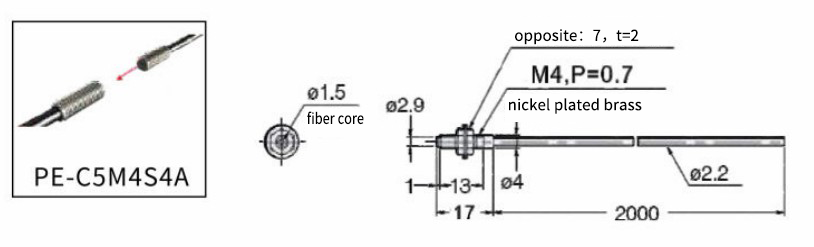

Overall dimensions


Brochures

Manuals

CAD/CAE

Certificate
