PE-C4Z2T3

PE-C4Z2T3 probe-on-beam fiber optic element.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

The probe type

50cm do not cut

Φ2.5

Top view

Bending radius R10

The diameter of optical axis is Φ0.125

Basic parameters

Fiber optic componentsThe probe type Trough beam

SpecificationΦ2.5

TypeTop view

Bending radiusR10

Optical axis diameterΦ0.125

Detection distanceHSP：-；FINE：13；TURBO：18；
SUPER：23；ULTRA：32；MEGA：45

Mechanical parameters

Overall dimensions50cm do not cut

Environmental conditions

Operating temperature﹣40…+70℃

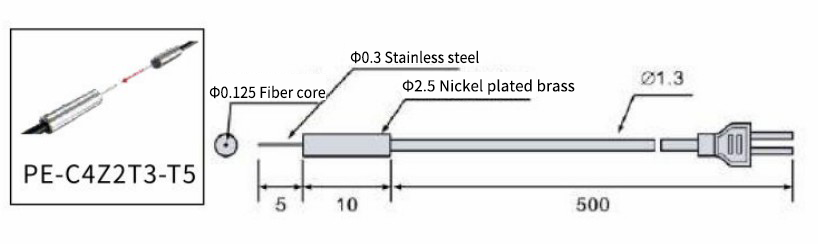

Overall dimensions
