PE-C4M3T3

PE-C4M3T3 probe-on-beam fiber optic element.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

The probe type

1m free cut

Top view

Bending radius R10

The diameter of optical axis is Φ0.5

Basic parameters

Fiber optic componentsThe probe type Trough beam

SpecificationM3

TypeTop view

Bending radiusR10

Optical axis diameterΦ0.5

Detection distanceHSP：72；FINE：170；TURBO：240；
SUPER：340；ULTRA：500；MEGA：690

Mechanical parameters

Overall dimensions1m free cut（Φ1.0）

Environmental conditions

Operating temperature﹣40…+70℃

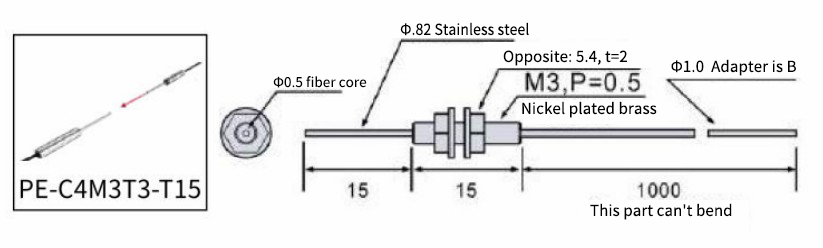

Overall dimensions
