PE-F9AL5Z1

PE-F9AL5Z1 small spot optical fiber element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

The lens is a small spot (the diameter of the spot is about Φ0.1)

Small dot lens built in

The focal length of 5

Minimum bending radius R25

Basic parameters

Fiber optic componentsSmall point lens with built-in reflection type

TypeSpot light

Light spot diameterAbout Φ0.1

Focal length5

Minimum bending radius of fiber elementR25

Environmental conditions

Operating temperature﹣40…+70℃

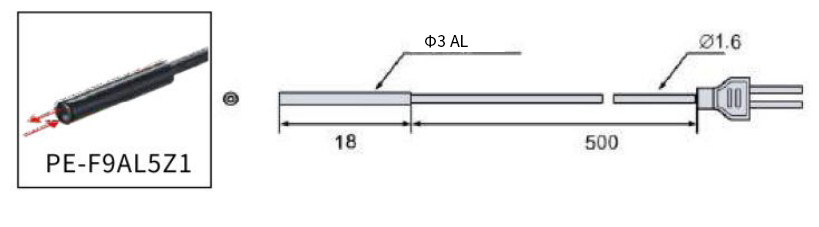

Overall dimensions
