PE-F9L15Z5

PE-F9L15Z5 small spot optical fiber element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

The lens is a small spot (the diameter of the spot is about Φ0.5)

The focal length of 15±2

Matching straight and L-shaped fiber elements: minimum bending radius R2, R10 stainless steel, R25

Basic parameters

Fiber optic componentsSmall spot type reflection type

TypeSpot light

Light spot diameterAbout Φ0.5

Focal length15±2

Minimum bending radius of fiber elementR2 tortuous；R10 stainless steel；R25

Environmental conditions

Operating temperature﹣40…+70℃

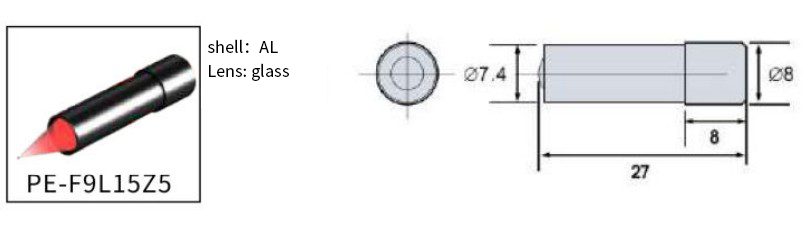

Overall dimensions


Brochures

Manuals

CAD/CAE

Certificate
