PE-F9TP4A

PE-F9TP4A parallel beam optical fiber element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Lens is about Φ4 spot (detection distance within 0 to 20)

Parallel beam pattern

Matching straight and L-shaped fiber elements: minimum bending radius R2, R10 stainless steel, R25

Basic parameters

Fiber optic componentsParallel beam type reflection type

TypeApproximately Φ4 spot (detection distance
within 0 to 20)

Light spot diameterParallel beam pattern

Focal length8...30

Minimum bending radius of fiber elementR2 tortuous；R10 stainless steel；R25

Environmental conditions

Operating temperature﹣40…+70℃

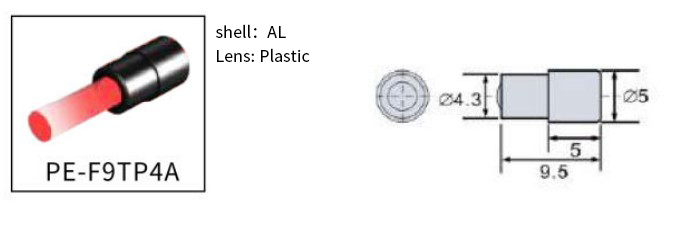

Overall dimensions
