PE-F9T8Z5

PE-F9T8Z5 adjustable light spot optical fiber element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

The lens is a side-view adjustable point of light

Spot diameter Φ0.5 to 3, focal length 8 to 30

Matched straight fiber elements: minimum bending radius R2、 R10 stainless steel、R25

Basic parameters

Fiber optic componentsAdjustable light point type reflection type

TypeA point of light with an adjustable side view

Light spot diameterΦ0.5...3

Focal length8...30

Minimum bending radius of fiber elementR2 tortuous；R10 stainless steel；R25

Environmental conditions

Operating temperature﹣40…+70℃

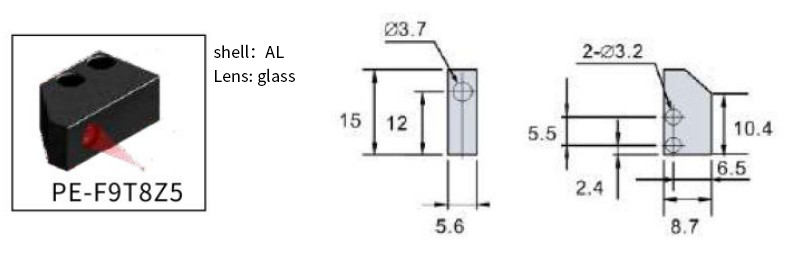

Overall dimensions


Brochures

Manuals

CAD/CAE

Certificate
