PE-F8T1P3

PE-F8T1P3 narrow beam reflection fiber element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

1m do not cut

Top view

Angle of aperture＞8°

Bending radius R10 stainless steel

Basic parameters

Fiber optic componentsNarrow beam type reflection type

TypeTop view

Angular aperture＞8°

Bending radiusR10 stainless steel

Detection distanceHSP: 30...160；FINE: 30...290；TURBO: 30...410:
SUPER: 30...760；ULTRA: 30...1600；
MEGA: 30...2300

Mechanical parameters

Overall dimensions1m do not cut

Environmental conditions

Operating temperature﹣40…+70℃

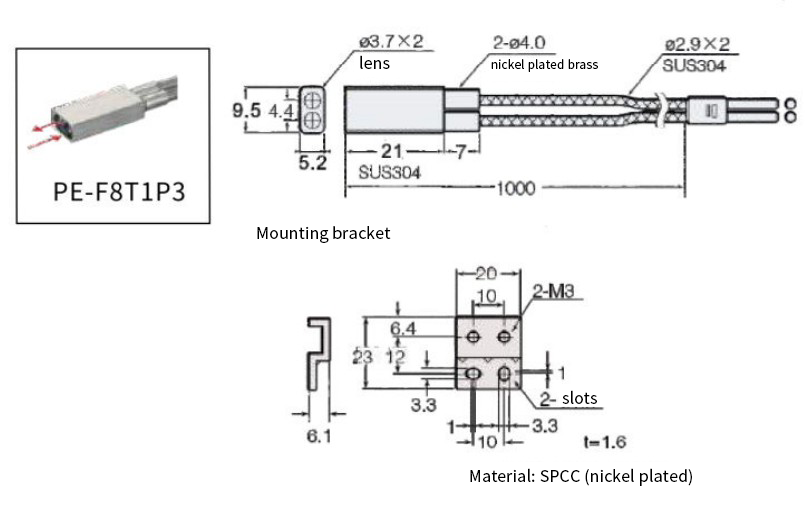

Overall dimensions
