PE-F8T1P1

PE-F8T1P1 narrow beam reflection fiber element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

2m free cut

Top view

Angle of aperture＞8°

Bending radius R2 is resistant to twists and turns

Basic parameters

Fiber optic componentsNarrow beam type reflection type

TypeTop view

Angular aperture＞8°

Bending radiusR2 tortuous

Detection distanceHSP: 30...160；FINE: 30...290；TURBO: 30...410:
SUPER: 30...760；ULTRA: 30...1600；
MEGA: 30...2300

Mechanical parameters

Overall dimensions2m free cut（Φ2.2×2）

Environmental conditions

Operating temperature﹣40…+70℃

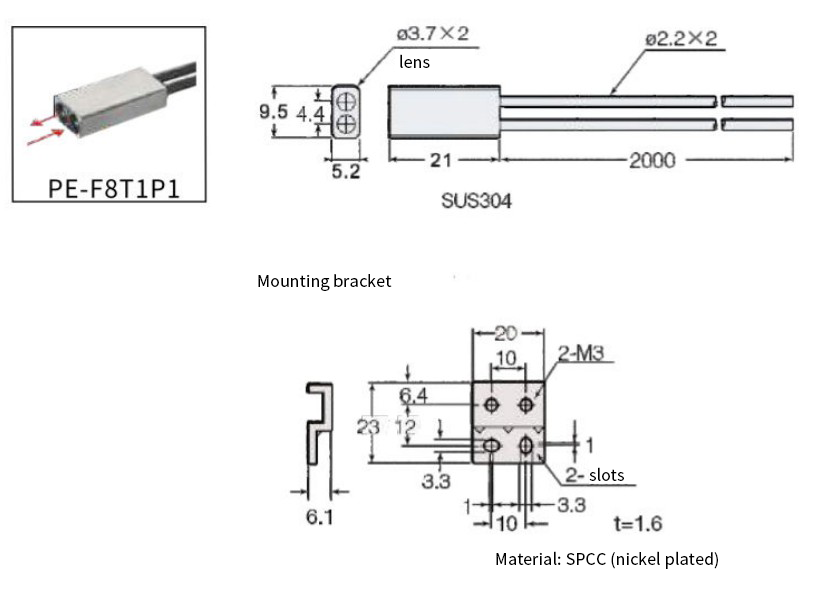

Overall dimensions
