PE-F7R3C2

PE-F7R3C2 liquid level reflective optical fiber element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

2m free cut

Detection method: pipeline installation type

Diameter of transparent pipe above Φ26

The beam axis 16

Bending radius R5

Basic parameters

Fiber optic componentsLiquid level reflection type

Detection methodPipe mounted type

Diameter of transparent pipeΦ26 or above is recommended

Beam axle16

Bending radiusR5

AccessoriesWithout

Mechanical parameters

Overall dimensions2m free cut（Φ2.2×2）

Environmental conditions

Operating temperature﹣40…+70℃

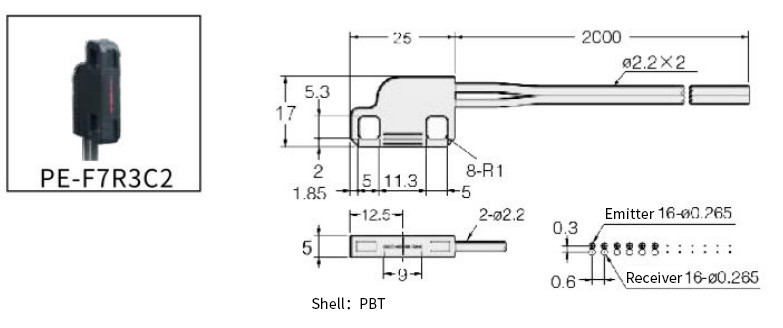

Overall dimensions
