PE-F7R2C4

PE-F7R2C4 liquid level reflective optical fiber element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

2m free cut

Detection method: pipeline installation type

Diameter of transparent pipe Φ4 to 26

The beam axis 1

Bending radius R10

Basic parameters

Fiber optic componentsLiquid level reflection type

Detection methodPipe mounted type

Diameter of transparent pipeΦ4...26

Beam axle1

Bending radiusR10

AccessoriesHelp and x 2; Non-slip rubber ×2; Clapboard x 2;
Screw x 2; Nut x 2

Mechanical parameters

Overall dimensions2m free cut（Φ1.0×2）

Environmental conditions

Operating temperature﹣40…+105℃

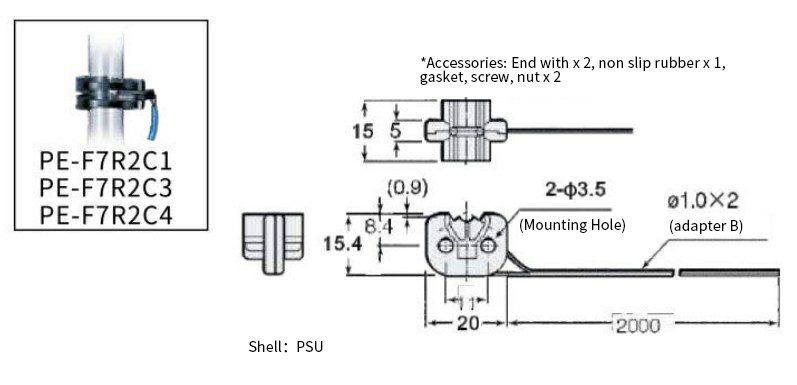

Overall dimensions

PE-F7R2C1 C3 C4尺寸图~英.png
