PE-F7R1C0

PE-F7R1C0 liquid level reflective optical fiber element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

2m free cut

Detection method: immersion type

The bending radius of the optical fiber is R0.5

PFA shell bending radius R40

Basic parameters

Fiber optic componentsLiquid level reflection type

Detection methodImmersion model

Diameter of transparent pipe——

Beam axle——

Bending radiusOptical fiber: R0.5 tortuous resistance; PFA
Housing part: R40

Accessories——

Mechanical parameters

Overall dimensions2m free cut（Φ1.3×2）

Environmental conditions

Operating temperature﹣40…+70℃

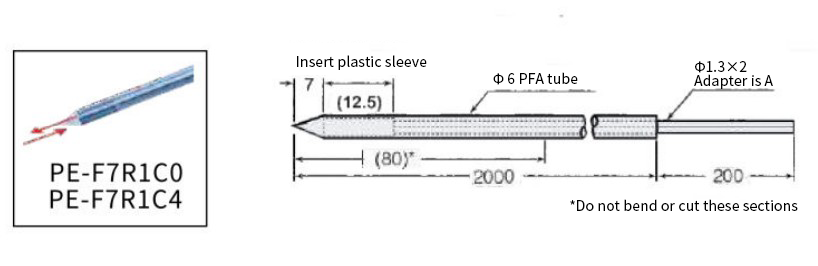

Overall dimensions

PE-F7R1C0 C4尺寸图-英.png
