PE-F6R2C4

PE-F6R2C4 area type reflective fiber element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

The area type

2m free cut

Bending radius R25

Basic parameters

Fiber optic componentsArea type reflective type

TypeArea

Bending radiusR25

Detection distanceHSP: 5...110; FINE: 5...140; TURBO: 5...160;
SUPER: 5...200; ULTRA: 5...200; MEGA: 5...200

Mechanical parameters

Overall dimensions2m free cut（Φ2.2×2）

Environmental conditions

Operating temperature﹣40…+70℃

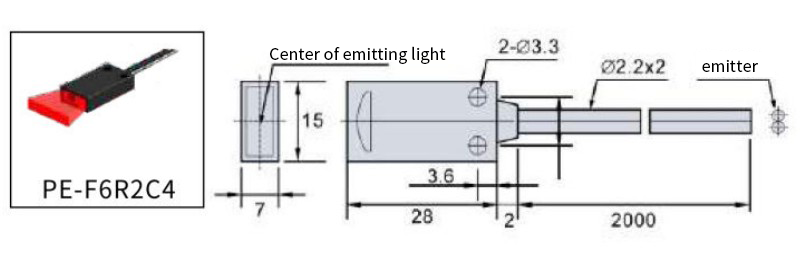

Overall dimensions


Brochures

Manuals

CAD/CAE

Certificate
