PE-F6R1C2

PE-F6R1C2 area type reflective fiber element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

The array type

2m free cut

Bending radius R4

Basic parameters

Fiber optic componentsArea type reflective type

TypeArray

Bending radiusR4

Detection distanceHSP：60；FINE：140；TURBO：180；
SUPER：260；ULTRA：460；MEGA：740

Mechanical parameters

Overall dimensions2m free cut（Φ2.2×2）

Environmental conditions

Operating temperature﹣40…+70℃

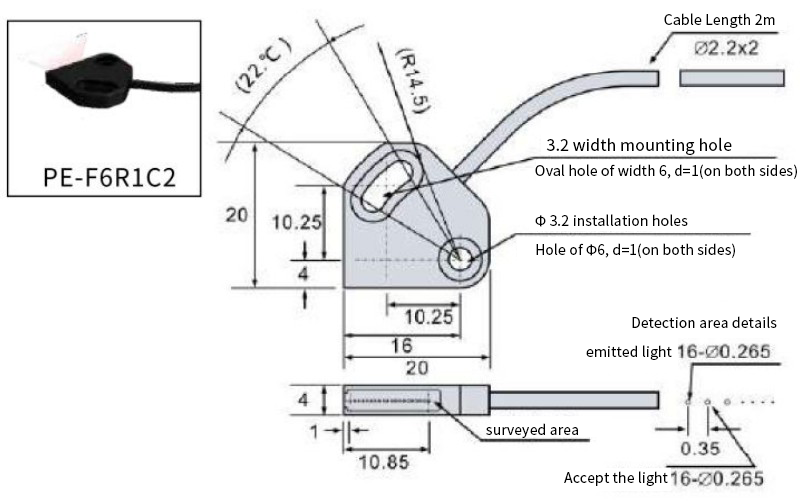

Overall dimensions
