PE-F5M4C3

PE-F5M4C3 high temperature resistant reflective fiber element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

High temperature resistant type

1m do not cut

M4 specifications

Bending radius R8

Basic parameters

Fiber optic componentsHigh temperature resistant reflective type

SpecificationM4

Bending radiusR8

Detection distanceHSP：100；FINE：190；TURBO：340；
SUPER：450；ULTRA：650；MEGA：770

Mechanical parameters

Overall dimensions1m do not cut

Environmental conditions

Operating temperature﹣40…+200℃

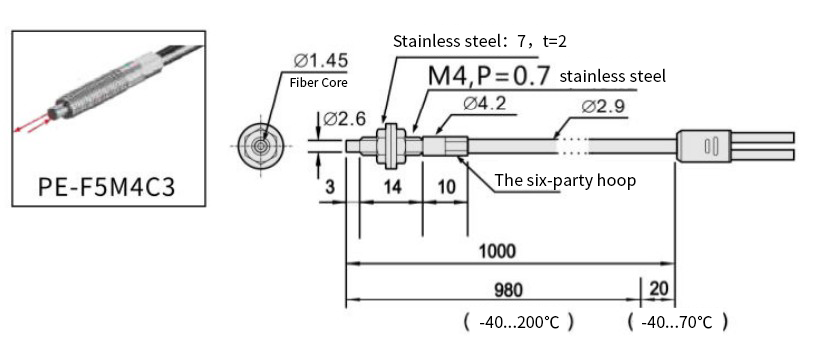

Overall dimensions


Brochures

Manuals

CAD/CAE

Certificate
