PE-F1M4P2

PE-F1M4P2 highly elastic reflective fiber element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

High elastic type

2m free cut

M4 specifications

Bending radius R4

Basic parameters

Fiber optic componentsHigh elastic type reflective type

SpecificationM4

Bending radiusR4

Detection distanceHSP：32；FINE：63；TURBO：80；
SUPER：130；ULTRA：200；MEGA：290

Mechanical parameters

Overall dimensions2m free cut（Φ1.0×2）

Environmental conditions

Operating temperature﹣40…+70℃

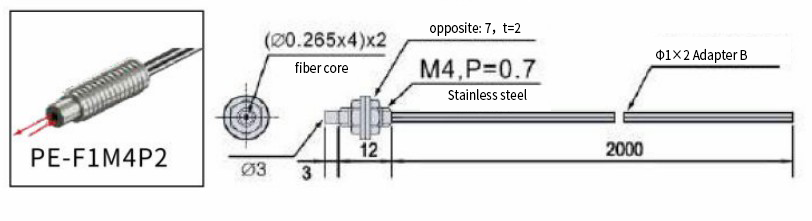

Overall dimensions


Brochures

Manuals

CAD/CAE

Certificate
