PE-F1M3C1A

PE-F1M3C1A highly elastic reflective fiber element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

High elastic type

1m free cut

M3 specifications

Bending radius R2

Basic parameters

Fiber optic componentsHigh elastic type reflective type

SpecificationM3

Bending radiusR2

Detection distanceHSP：13；FINE：40；TURBO：60；
SUPER：80；ULTRA：110；MEGA：140

Mechanical parameters

Overall dimensions1m free cut（Φ1.0×2）

Environmental conditions

Operating temperature﹣40…+70℃

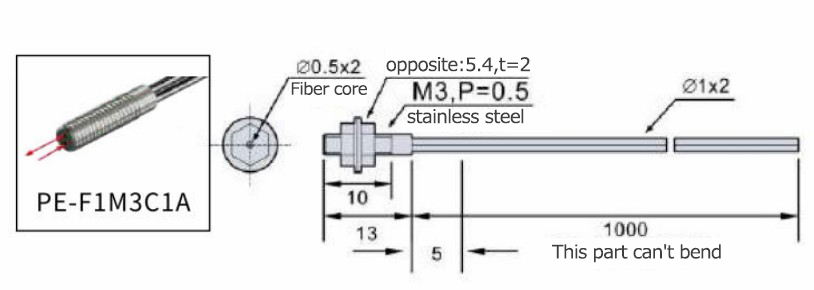

Overall dimensions
