PE-F4Z3T2

PE-F4Z3T2 probe type reflective fiber element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

The probe type

50cm do not cut

Φ3 specifications

Top view

Bending radius R4

Basic parameters

Fiber optic componentsProbe type reflection type

TypeTop view

Bending radiusR4

Detection distanceHSP：8；FINE：18；TURBO：27;
SUPER：40；ULTRA：54；MEGA：68

Mechanical parameters

Overall dimensions50cm do not cut

Environmental conditions

Operating temperature﹣40…+70℃

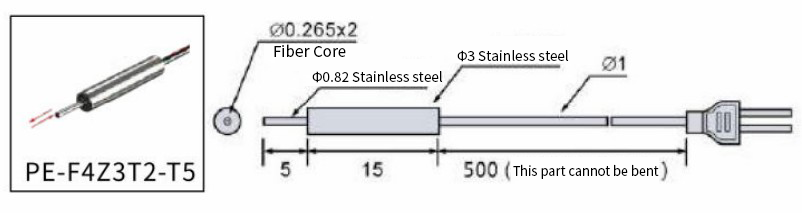

Overall dimensions


Brochures

Manuals

CAD/CAE

Certificate
