PE-F4Z1T3

PE-F4Z1T3 probe type reflective fiber element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

The probe type

1m do not cut

Φ1.5 specifications

Top view

Bending radius R10

基本参数

光纤元件探针型反射型

类型顶视

弯曲半径R10

检测距离HSP：2.4；FINE：4.8；TURBO：10;
SUPER：13；ULTRA：18；MEGA：27

机械参数

外形尺寸1m不可切割

环境条件

工作温度﹣40…+70℃

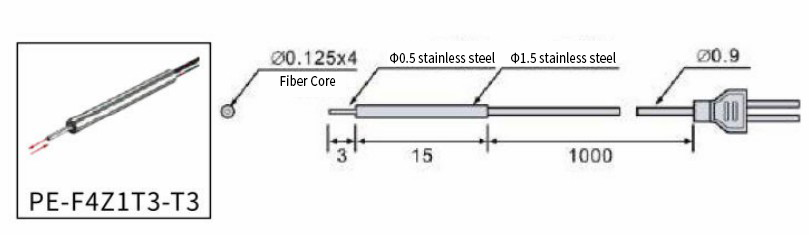

Overall dimensions
