PE-F4M3T2

PE-F4M3T2 probe type reflective fiber element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

The probe type

50cm do not cut

M3 specifications

Top view

Bending radius R4

Minimum casing bending radius R25

Basic parameters

Fiber optic componentsProbe type reflection type

TypeTop view

Bending radiusR4

Detection distanceHSP：8；FINE：18；TURBO：27;
SUPER：40；ULTRA：54；MEGA：290

Mechanical parameters

Overall dimensions50cm do not cut

Environmental conditions

Operating temperature﹣40…+70℃

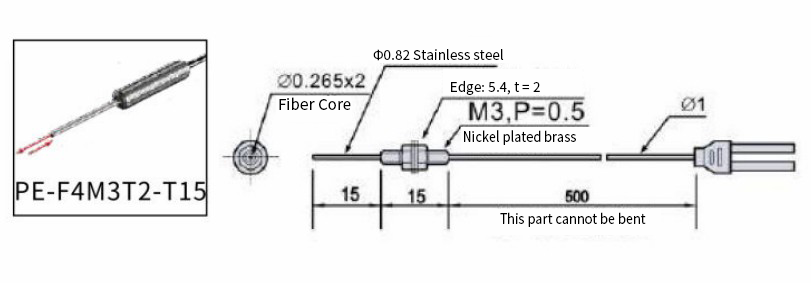

Overall dimensions


Brochures

Manuals

CAD/CAE

Certificate
