PE-F4Z2S3

PE-F4Z2S3 probe type reflective fiber element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

The probe type

1m do not cut

Φ2.8 specifications

Side view

Bending radius R10

Basic parameters

Fiber optic componentsProbe type reflection type

TypeSide view

Bending radiusR10

Detection distanceHSP：18；FINE：32；TURBO：50;
SUPER：81；ULTRA：130；MEGA：180

Mechanical parameters

Overall dimensions1m do not cut

Environmental conditions

Operating temperature﹣40…+70℃

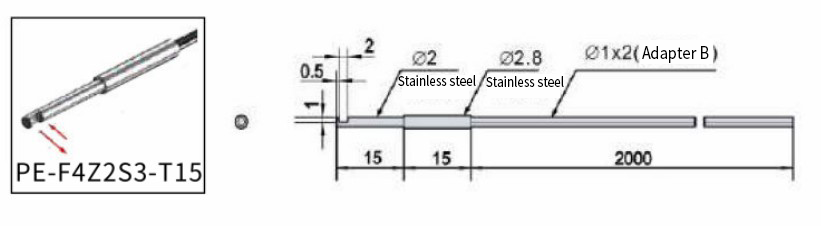

Overall dimensions
