FD100.20-58X80

FD100.20-58X80

FD100.20-58X80 absolute value solid shaft encoder can be used in servo motor field, elevator field, industrial robot field, industrial automation control production line field, etc.

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

Absolute value solid shaft encoder, single turn and multi turn options

General overall dimension, with outer diameter of 58mm

Analog output

Resolution up to 24 bits

Short circuit protection, overvoltage protection

Basic parameters
Outside diameter58mm
Shaft diameter6mm，8mm，10mm，12mm
Maximum speed of revolution12000 r
Maximum shaft loadAxial/radial：40N / 80N
Starting torque＜3Ncm
Moment of inertia＜30gcm2
Electrical parameters
Power supply10…30VDC
Output singalAnalog quantity
Working current＜350mA
Max resolutionOne turn 12 bits (4096) ;Cycles12 bits（4096）
Output frequencyAccording to the controller
Count directionAdjustable by default
Zero bit presetCan be set
Electrical interfaceCable connection：12×0.08mm2，1m
Connector：M23，12 pin
Mechanical parameters
Flange typeClamping flange / Synchronous flange
MaterialsShell: AL；Flange: AL；axle sleeve : stainless steel
WeightAbout 300g
Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ
Surge suppressionIEC 68-2-27；200m/s² 3ms
Environmental conditions
Operating temperature﹣40…+80℃
Storge temperature﹣40…+85℃
Protection classIP65 / IP67

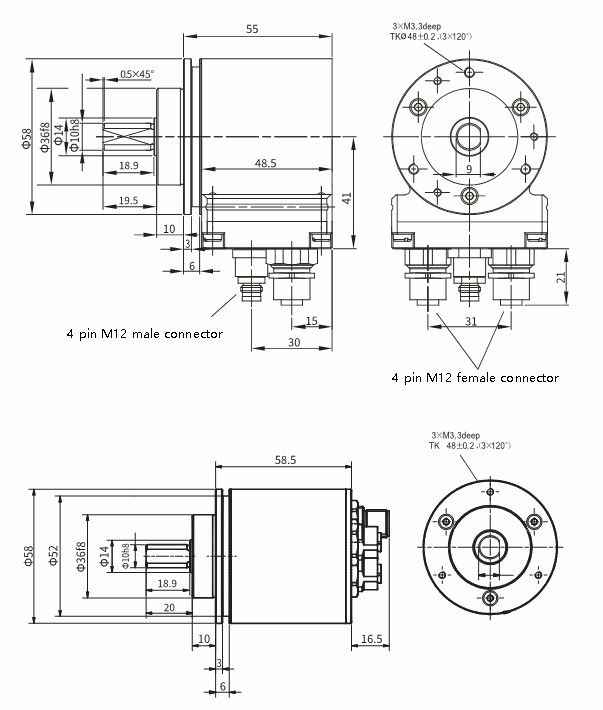

Overall dimensions

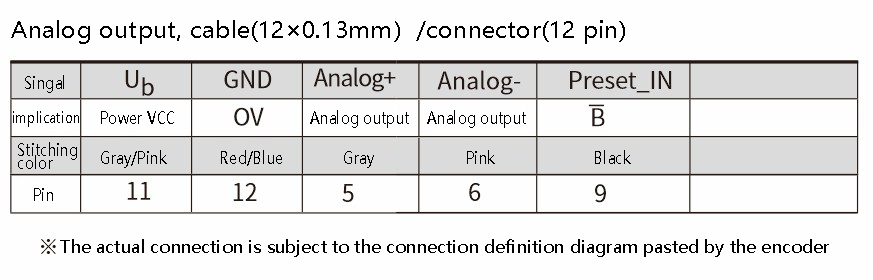

Wiring diagram
