FD100.20-110X71

FD100.20-110X71 absolute value hollow shaft encoder can be used in servo motor field, elevator field, industrial robot field, industrial automation control production line field, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Absolute value hollow shaft encoder, single turn and multi turn options

Large overall dimension, with outer diameter of 110mm

EtherCAT output

Resolution up to 30 bits

Short circuit protection, overvoltage protection

Basic parameters

Outside diameter110mm

Shaft sleeve diameter25…50mm

Maximum speed of revolution2000 r

Maximum shaft load——

Starting torque＜8Ncm

Moment of inertia＜500gcm2

Electrical parameters

Power supply10…30VDC

Output singalEtherCAT

Working current＜350mA

Max resolutionOne turn 16 bits（65536) ;Cycles15 bits（32768）

Output frequency100MBit/s

Count directionProgrammable setting

Zero bit presetProgrammable setting

Electrical interfaceConnector: M12 (5 pin)+M12 (5 hole)+M8 (4 pin)

Mechanical parameters

Flange type——

MaterialsShell: AL；Flange: AL；axle sleeve : stainless steel

WeightAbout 1700g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；200m/s² 3ms

Environmental conditions

Operating temperature﹣40…+80℃

Storge temperature﹣40…+85℃

Protection classIP54 / IP65

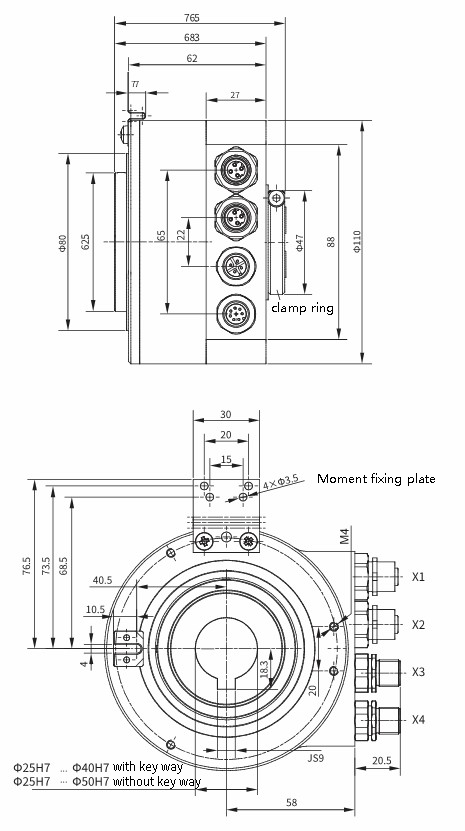

Overall dimensions
