FD100.20-58X70

FD100.20-58X70

FD100.20-58X70 absolute value solid shaft encoder can be used in servo motor field, elevator field, industrial robot field, industrial automation control production line field, etc.

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

Absolute value solid shaft encoder, single turn and multi turn options

General overall dimension, with outer diameter of 58mm

EtherCAT output

Resolution up to 32 bits

Short circuit protection, overvoltage protection

Basic parameters
Outside diameter58mm
Shaft diameter6mm，10mm，12mm
Maximum speed of revolution12000 r
Maximum shaft loadAxial/radial：40N/110N
Starting torque＜3Ncm
Moment of inertia＜30gcm2
Electrical parameters
Power supply10…30VDC
Output singalEtherCAT
Working current＜350mA
Max resolutionOne turn 16 bits(65536) ;Cycles 16 bits(65536）
Output frequency100MBit/s
Count directionProgrammable setting
Zero bit presetProgrammable setting
Electrical interfaceConnector: M12(5 pin)+M12 (5 hole) +M8 (4 pin)
Mechanical parameters
Flange typeClamping flange / Synchronous flange
MaterialsShell: AL；Flange: AL；axle : stainless steel
WeightAbout 520g
Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ
Surge suppressionIEC 68-2-27；200m/s² 3ms
Environmental conditions
Operating temperature﹣40…+80℃
Storge temperature﹣40…+85℃
Protection classIP65 / IP67

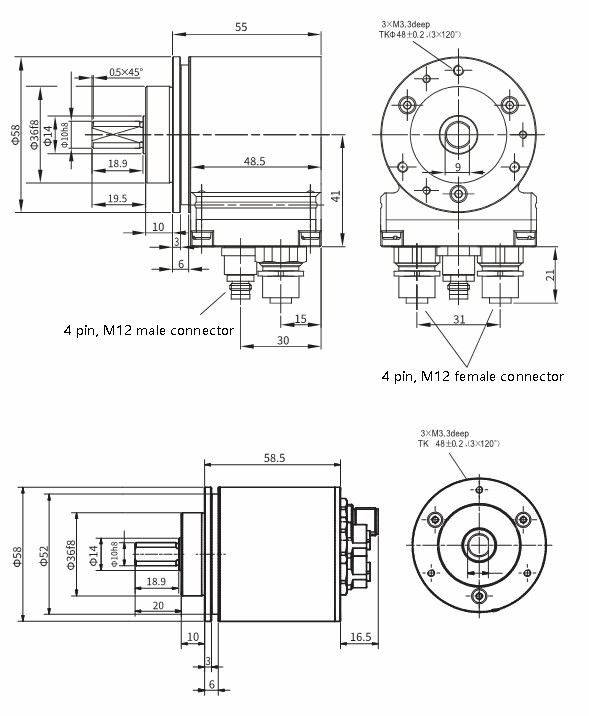

Overall dimensions

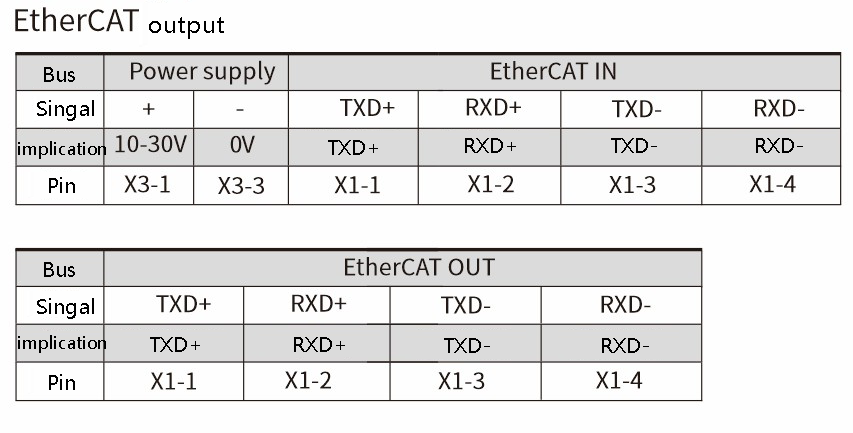

Wiring diagram





Brochures
Manuals
CAD/CAE
Certificate
