FD-CM1 ultra-thin series,light curtains are used in machining equipment,hazardous work areas,to prevent mechanical equipment to the operator's injuries and accidentally enter the dangerous area caused by personal injury, equipment injury, to protect personal and equipment safety.
Slim side dimensions, only 13mm thick, suitable for installation in tight spaces
Optical axis spacing of 10mm, 20mm, 40mm
Compact size, compact structure
Highly resistant to optical and electromagnetic interference, line-synchronous technology
Response time of less than 1ms
Wide operating voltage range of 10...30VDC

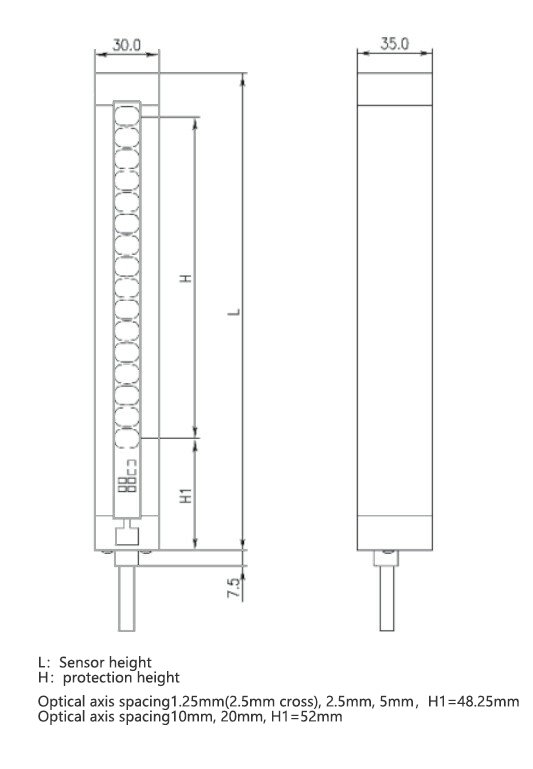

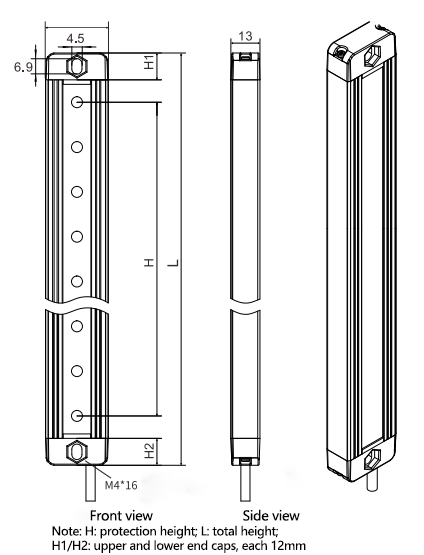

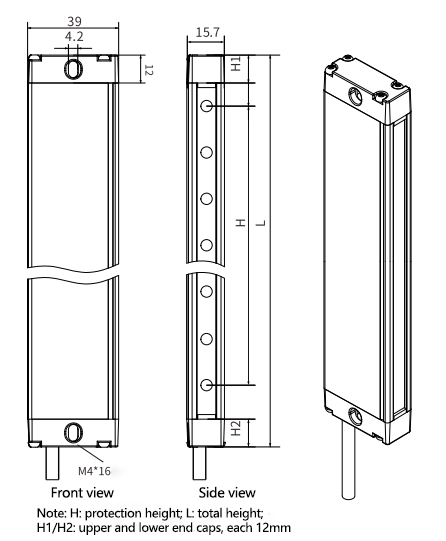

Overall dimensions
CM1正感应面外形尺寸图 CM1侧感应面外形尺寸图

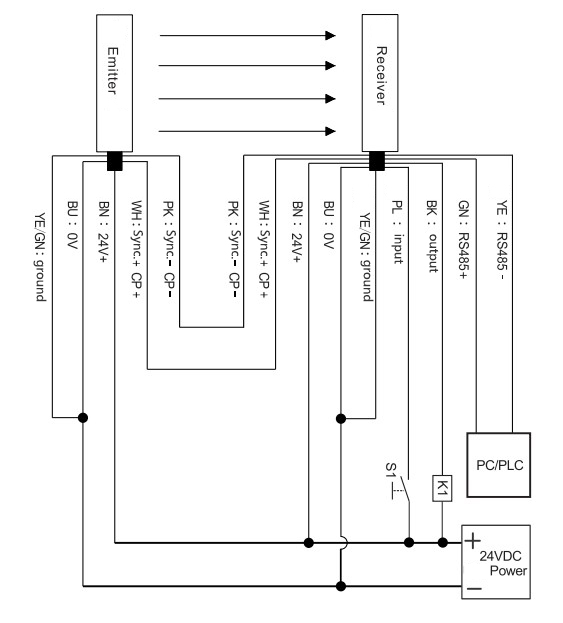

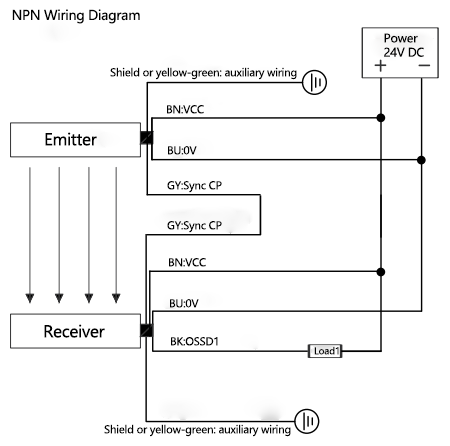

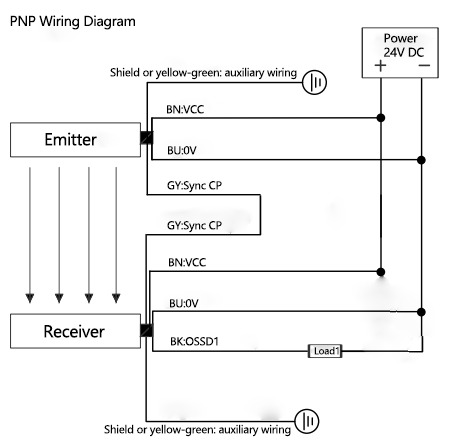

Wiring diagram
